Description

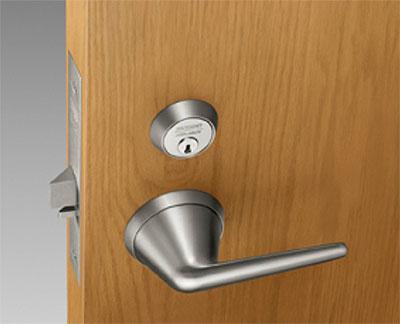

Sargent 28-8217-BHL-US32D Ligature Resistant Asylum or Institutional Mortise Lock, Behavioral Health Trim, Field Reversible, US32D/630 Satin Stainless Steel Finish
The Sargent 8217-BHL-US32D is a Grade 1 Heavy Duty Ligature Resistant Asylum or Institutional function Mortise Lock with BHL trim in US32D Satin Stainless Steel Finish. Sargent 8217-BHL-US32D has a 2-3/4" backset, for doors 1-3/4" to 1-7/8" thickness, and has BHL trim which can be used on virtually any openings in healthcare applications.
| Technical Specs | |
| Function | 15 Passage |
| ANSI Function |
F01 - Passage |
| Lever/Knob Design |
BHL Lever |
| Cylinder Type |
Non-Keyed |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
