Description

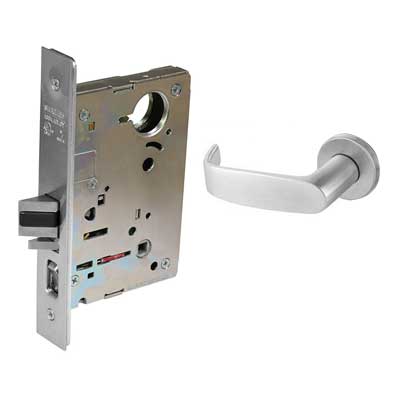

The Sargent 8237 LNL 26D is a Grade 1 Heavy Duty Classroom Function Mortise Lock with an LN Rose, an L Lever, a LA Keyway, Keyed Random and comes in a Satin Chrome Finish. Sargent 8237 LNL 26D has a 2-3/4" backset, and is for use on 1-3/4" thick doors.
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| Application | Complete Lock |
| Base Material | Brass or Bronze |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
Technical Specs
| Function | 37 Classroom |
| ANSI Function |
F05 - Classroom |
| Lever/Knob Design |
L - Lever |
| Rose/Escutcheon Design |
LN - Rose |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | LA |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Field Reversible |
| Door Thickness | 1-3/4 In. |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4 In. |
| Lock Face Size | 8 In. x 1-1/4 In. |
| Bolt Projection | 3/4 In. Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Mortise Lock |
