Description

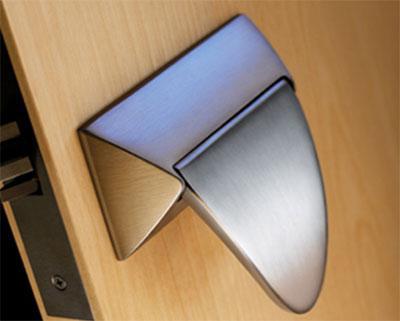

Sargent 28-8252-ALP-US32D Ligature Resistant Institutional Function Push/Pull Trim Mortise Lock, Field Reversible, US32D/630 Satin Stainless Steel Finish
The Sargent 8252-ALP-US32D is a Grade 1 Heavy Duty Ligature Resistant Institutional function Mortise Lock with ALP Push/Pull Trim and comes in US32D Satin Stainless Steel Finish. Sargent 8252-ALP-US32D has a 2-3/4" backset, for doors 1-3/4" to 1-7/8" thickness, and can be mounted horizontal (up or down) and vertical (sideways) orientations in the field
| Technical Specs | |
| Function | 52 Institutional |
| Lever/Knob Design |
ALP Ligature |
| Rose/Escutcheon Design |
ALP Ligature |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | LA |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Field Reversible |
| Door Thickness | 1-3/4 In. |
| Std. Latch Type | Combination Latch and Bolt |
| Std. Latch Backset Dim | 2-3/4 In. |
| Lock Face Size | 8 In. x 1-1/4 In. |
| Bolt Projection | 3/4 In. Latch, 1 in. Deadbolt |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Mortise Lock |
