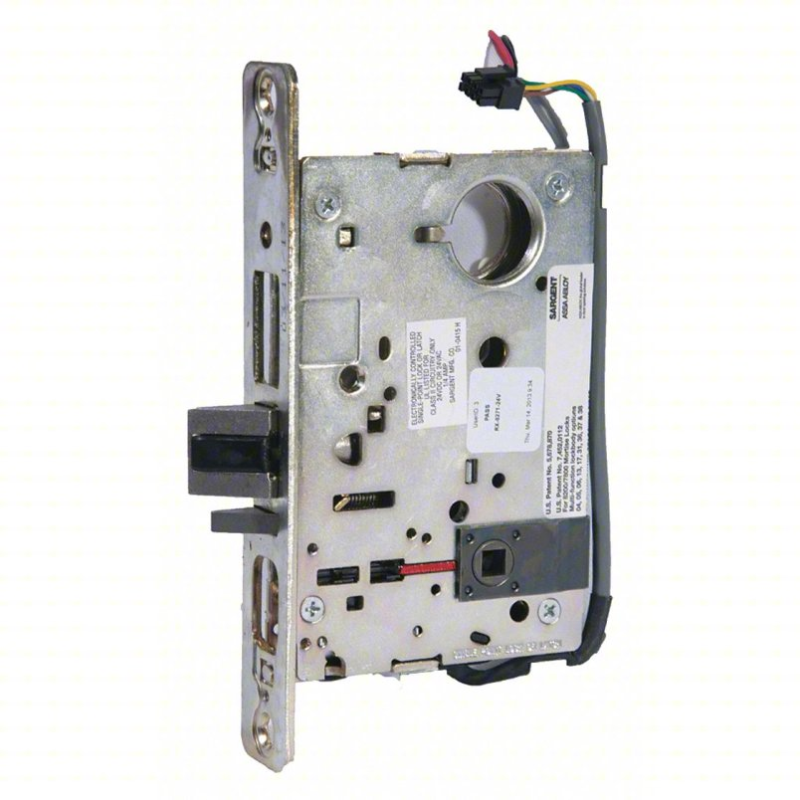

Sargent 8272-24V Lock Body Only Electro Mechanical Fail Safe Function, Double Cylinder, 24VDC, Grade 1, Feild Reversible

The Sargent 8272-24V Lock Body Only Electro Mechanical Fail Safe Function, Double Cylinder, 24VDC, Grade 1, Feild Reversible is built for commercial openings that require dependable electrified mortise lock performance with field-reversible handing. This lock body only configuration is designed around the 8272-24V electro mechanical fail safe function, combining double cylinder operation with 24VDC power requirements and Grade 1 durability. As part of the Sargent 8200 Series mortise lock platform, it delivers heavy-duty security and code-focused performance for demanding applications where a fail safe electrified lock body is needed without trim.

Features

• Sargent 8272-24V lock body only configuration for use where existing or separate trim will be supplied.

• Electro mechanical fail safe function unlocks when power is interrupted.

• Double cylinder operation provides keyed control from both sides.

• 24VDC operation matches the electrical requirement shown in the title.

• Grade 1 construction is designed for high-use commercial applications.

• Feild reversible handing allows the lock body to be adjusted for door handing in the field.

• Built on the Sargent 8200 Series mortise lock platform for heavy-duty institutional and commercial use.

Functional Details

This electro mechanical fail safe function is intended for openings where the lock must release upon loss of power. In normal use, the electrified mortise lock works with access control systems while maintaining the mechanical key operation associated with a double cylinder function.

• 72 function — Power ON, locks both levers

• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)

• Key on either side retracts latchbolt

• Lever from either side retracts latchbolt, except when levers are locked

• Both levers can only be locked & unlocked electronically

• Levers can not be locked separately, only together

• Auxiliary deadlatch

Included Components

This product is a lock body only package. Trim, cylinders, strikes, and other door hardware components are supplied separately unless otherwise specified for the complete opening.
