Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Lever Passage |
| Device Length | 36" |
| Hand | LHR or RHR |
| Top Strike | 646 |
| Strike Bottom | 624 |
| Includes Trim | Yes, ETL |
| Minimum Stile Size | 4-1/2" with Trim, 3-1/2" without Trim |
| Door Material | Metal or Wood |
| Door Width | 33" - 36" |
| Door Height | 84 In. |
| Door Thickness | 1-3/4" to 2-1/4" |
| Fire Rated | No |
| Product Type | Surface Vertical Rod Exit Devices |
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |

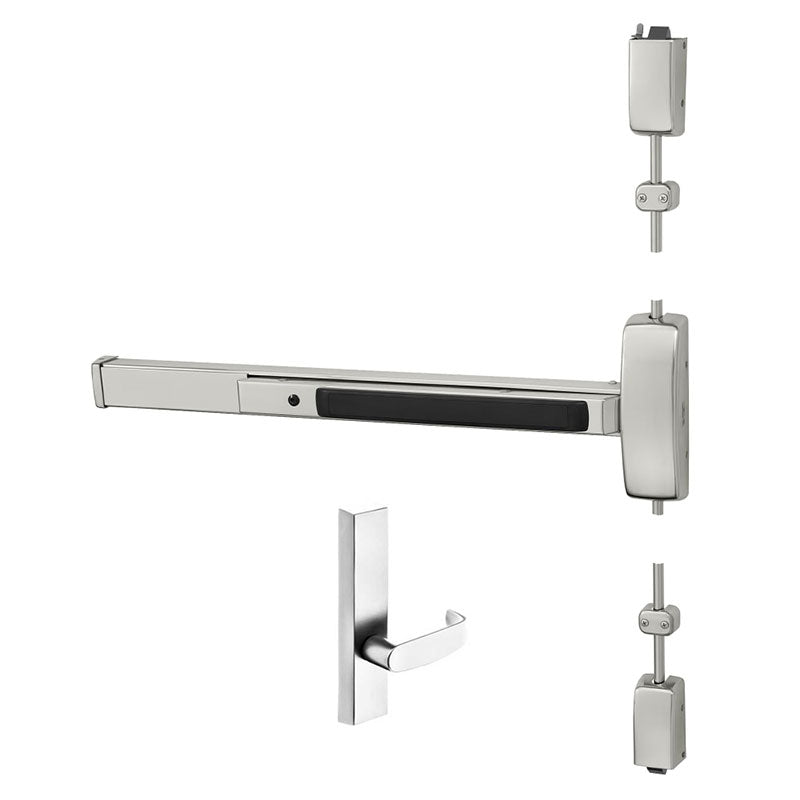

The Sargent 8715-F-ETL Surface Vertical Rod Exit Device Panic Bar comes with an ETL Passage Lever Trim, a 33"-36" bar, 84" high rod and comes In US32D And US10B Finishes.
