Sargent 8715-F-ETL-96 Surface Vertical Rod Exit Device, Passage Function, ETL Trim, 96" Door Height, 33"-36" Bar

SKU: 8715F96ETLUS32DLHR

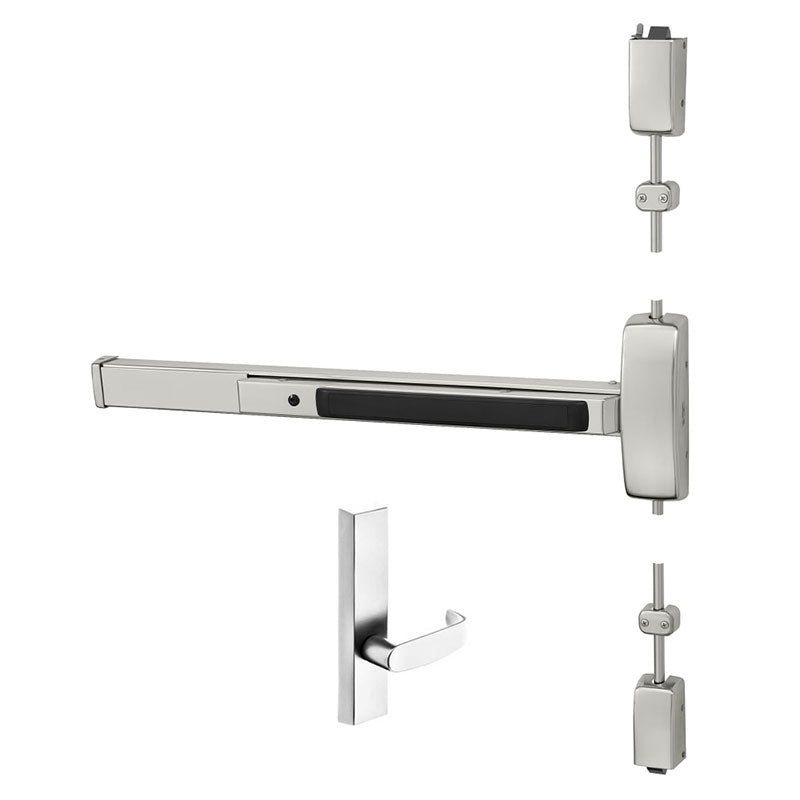

Sargent 8715-F-ETL-96-US32D Surface Vertical Rod Exit Device

Sargent 8715-F-ETL-96-US10B Surface Vertical Rod Exit Device

Sargent 8715-F-ETL-96-US32D Surface Vertical Rod Exit Device

Sargent 8715-F-ETL-96-US10B Surface Vertical Rod Exit Device

All SARGENT Products

Sargent 8715-F-ETL-96 Surface Vertical Rod Exit Device, Passage Function, ETL Trim, 96" Door Height, 33"-36" Bar

SKU: 8715F96ETLUS32DLHR

$2,890.00/ea

Available (1‑2 Weeks)

1-2 Weeks Lead Time

Choose your options

Finish: US32D Satin Stainless Steel (630)

Handing: LHR - Left Hand Reverse

Variant

Quantity:

Qty

Description
Product Specs
Technical Specs
Document Center
Handing Chart

Description

The Sargent 8715-F-ETL Surface Vertical Rod Exit Device Panic Bar comes with an ETL Passage Lever Trim, a 33"-36" bar, 96" high rod and comes In US32D And US10B Finishes.

Product Specs

Manufacturer	Sargent
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	No
Burglar Rated	No
ADA Compliance	No

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Surface Vertical Rod
Mechanical Function	Lever Passage
Device Length	36"
Hand	LHR or RHR
Top Strike	646
Strike Bottom	624
Includes Trim	Yes, ETL
Minimum Stile Size	4 1/2" with Trim, 3 1/2" without Trim
Door Material	Metal or Wood
Door Width	33" - 36"
Door Height	96 In.
Door Thickness	1 3/4" to 2 1/4"
Fire Rated	No
Product Type	Surface Vertical Rod Exit Devices

Document Center

Product Cut Sheet

Handing Chart

Panic Handing Chart
