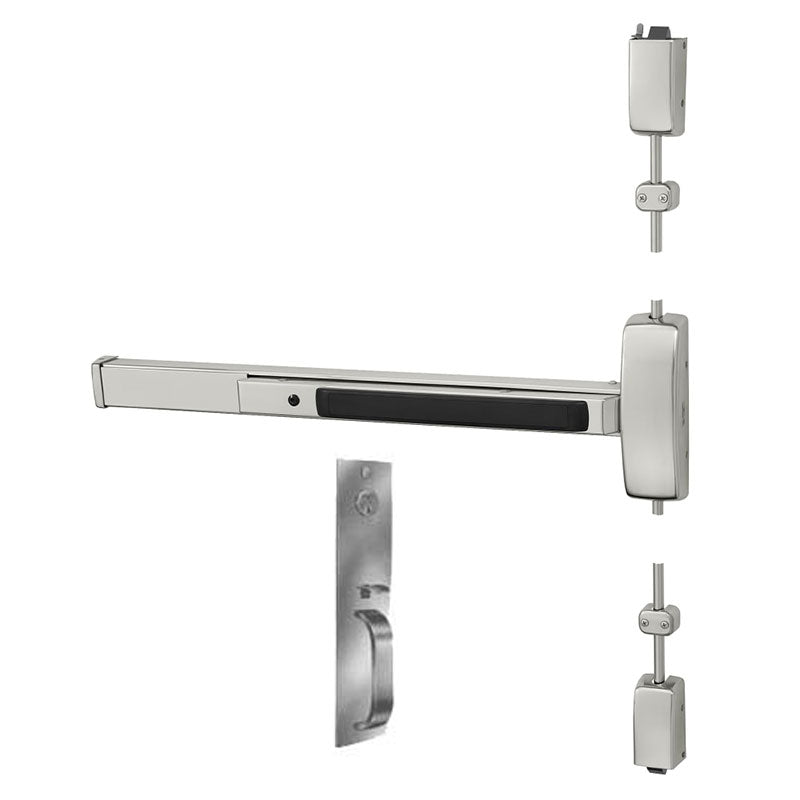

The Sargent 8763-G-PTB-96 is a 48" Surface Vertical Rod Exit Device in Classroom Function for 43" - 48" Door Width, with 96" Door Heights, and features a PTB trim where the Key Locks Or Unlocks with the Thumb Piece.
63 Classroom PTB Trim
Key Outside Unlocks/Locks Thumbpiece
The 8763 Is a Commercial Grade One Surface Vertical Rod Panic Device, Two-point latching (top & bottom with adjustability through the center case) Standard bottom latch compatible with latch track thresholds (by others) Single and double door applications. Devices are ANSI A156.3 - Grade 1, Hex key dogging standard on non-fired rated devices; specify 16- for cylinder dogging.
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Classroom |
| Device Length | 48" |
| Hand | Left Hand Reverse or Right Hand Reverse |
| Dogging Options | Hex Key Dogging |
| Top Strike | 646 |
| Strike Bottom | 624 |
| Includes Trim | Yes |
| Trim Type | PTB |
| Includes Cylinder(s) | Optional |
| Minimum Stile Size | 3-1/2" |
| Door Material | Metal or Wood |
| Door Width | 43" to 48" |
| Door Height | 96" |
| Door Thickness | 1-3/4" to 2-1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Surface Vertical Rod Exit Devices |
