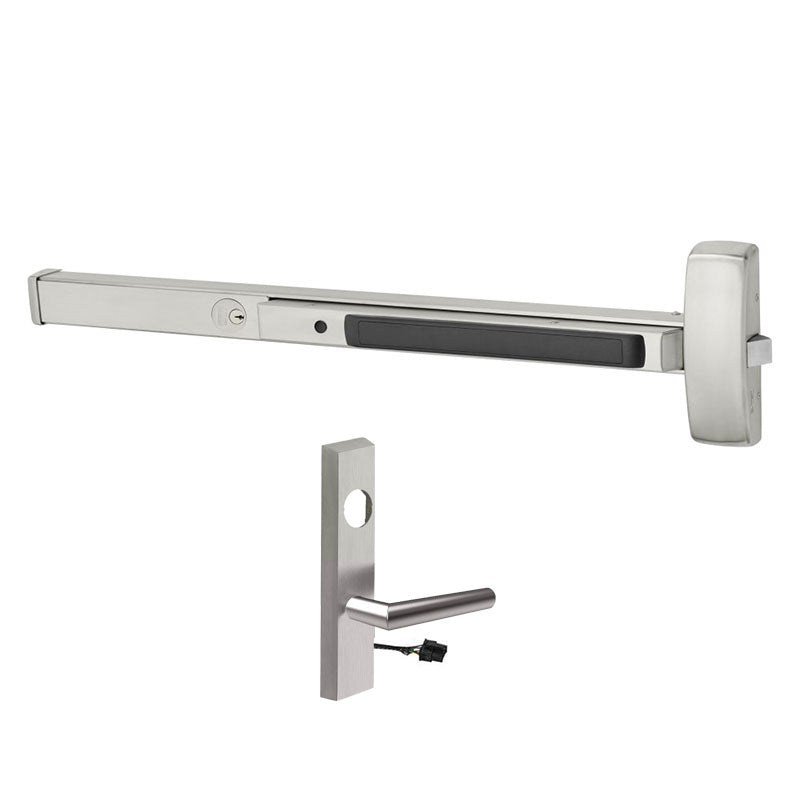

Sargent LC-16-8876-F-ETMI-24V-US32D Fire Rated Rim Exit Device, 24V Fail Secure, MI-Lever, Power off Unlocks Lever Key retracts Latch, 33-36 Inch Door, Cylinder Lockdown, Less Cylinder, Grade 1, 630 Satin Stainless Steel
The Sargent LC-16-8876-F-ETMI-24V-US32D Fire Rated Rim Exit Device is equipped with 24V fail secure feature and an MI-Lever for unlocking with power off. The lever can also be retracted by a key to release the latch, making it suitable for a 33-36 inch door. Additionally, it has a cylinder lockdown mechanism and is available as a Grade 1 device in 630 satin stainless steel.
76 Electrified ET Trim:
Fail Secure Power Off, Locks Lever, Less Cylinder
Cylinder Lockdown Feature:
16 Cylinder Lockdown uses a Sargent #41 Inside Cylinder with a 97 ring.
Allows the bar to be locked in the open position with a key.
The 8800 series is designed for standard-width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.
Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
8800 Features
- Designed for standard width stile applications on wood and metal doors
- Also available as an HC8800 or WS8800 for hurricane-resistant applications, see Hurricane-Resistant section of this catalog
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) Listed
