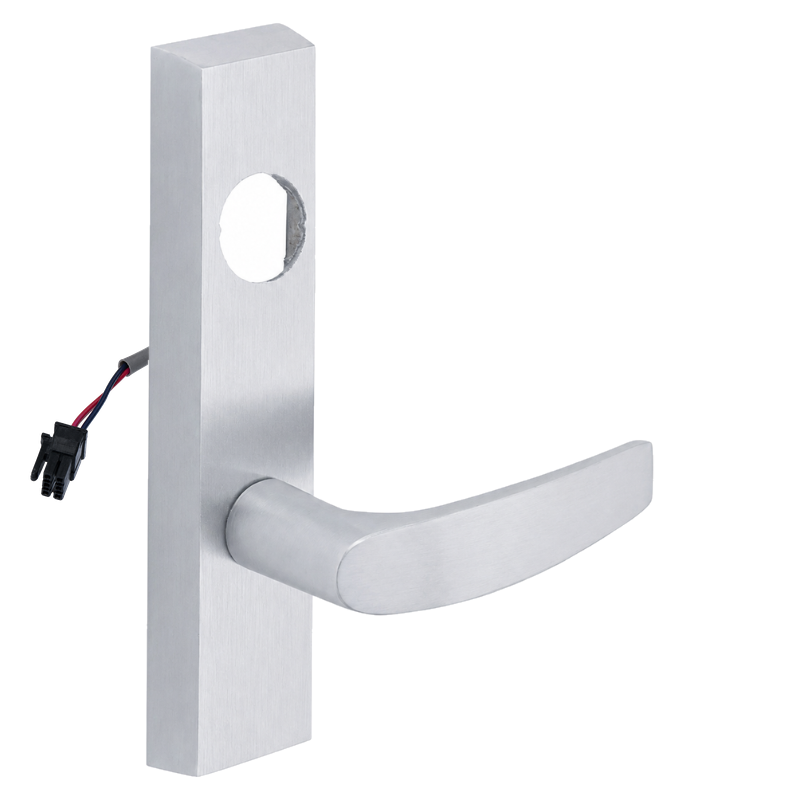

Sargent LC-776-8-ETB-24V Electrified Lever Trim, "ET" B Lever, Key Retracts Latch, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-776-8-ETB-24V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices, providing controlled outside access in a reliable keyed and electrified trim package. This configuration includes the "ET" B lever, key retracts latch function, and field-selectable fail safe/fail secure operation. With a 10.2V-26.4V operating range, the LC-776-8-ETB-24V offers flexible voltage compatibility for a range of access control applications. Supplied less cylinder, this Sargent electrified lever trim is a practical choice for retrofit or new commercial openings where secure entry and remote control are required.

Features

• Sargent LC-776-8-ETB-24V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• This trim uses the "ET" B lever design.
• The key retracts latch function allows keyed entry by retracting the latch.
• Fail safe/fail secure operation is field selectable for application flexibility.
• The trim operates on 10.2V-26.4V.
• This model is supplied less cylinder.

Functional Details

This electrified lever trim is used to control the outside lever through an access control system while maintaining compatibility with key operation. In this LC-776-8-ETB-24V configuration, the key retracts latch function provides mechanical latch retraction, and the trim can be set for fail safe or fail secure behavior to match the opening requirements.

• Field reversible handing.
• Field selectable for fail safe or fail secure.
• Operates on 12 or 24 volt AC/DC.
• Accepts cylinder for key operation.

Included Components

This electrified lever trim is supplied less cylinder. Cylinder must be ordered separately for keyed operation.
