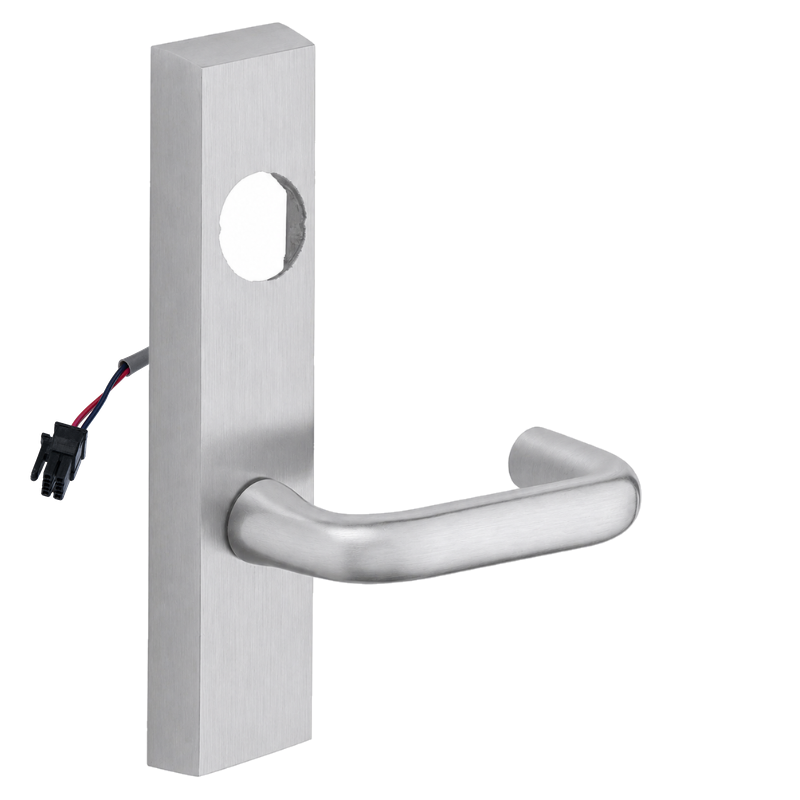

Sargent LC-776-8-ETJ-12V Electrified Lever Trim, "ET" J Lever, Key Retracts Latch, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-776-8-ETJ-12V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices and features the "ET" J lever configuration with key retracts latch operation. This electrified trim supports both fail safe and fail secure operation and is rated for 10.2V-26.4V input. Built for commercial applications that require controlled access at the door, the LC-776-8-ETJ-12V provides dependable electrified trim performance while allowing cylinder selection flexibility with its less cylinder configuration. It is a practical choice for paired compatibility with multiple Sargent exit device series in secured openings.

Features

• Sargent LC-776-8-ETJ-12V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• The trim includes the "ET" J lever design for a consistent grip and appearance.
• Key retracts latch functionality allows latch retraction by key operation.
• The unit supports both fail safe and fail secure electrical configurations.
• The operating voltage range is 10.2V to 26.4V.
• This model is supplied less cylinder for cylinder flexibility in the field.

Functional Details

This electrified lever trim is built to provide controlled entry from the trim side while working with compatible Sargent exit devices. Depending on how the unit is configured, it can operate in fail safe or fail secure mode, and the key retracts latch function allows mechanical latch retraction by key when required.

• Operates on either 12 or 24 volt AC/DC.
• Field selectable fail safe or fail secure.
• Key retracts latch.

Arm Type Details

This product is an electrified lever trim rather than a closer arm assembly, so there is no closer arm configuration associated with this model. Its primary operating component is the "ET" J lever trim used on the exterior side of compatible exit devices.

Included Components

The LC-776-8-ETJ-12V is supplied as electrified lever trim for compatible Sargent exit devices and is furnished less cylinder, allowing the cylinder to be specified separately to match the opening requirements.
