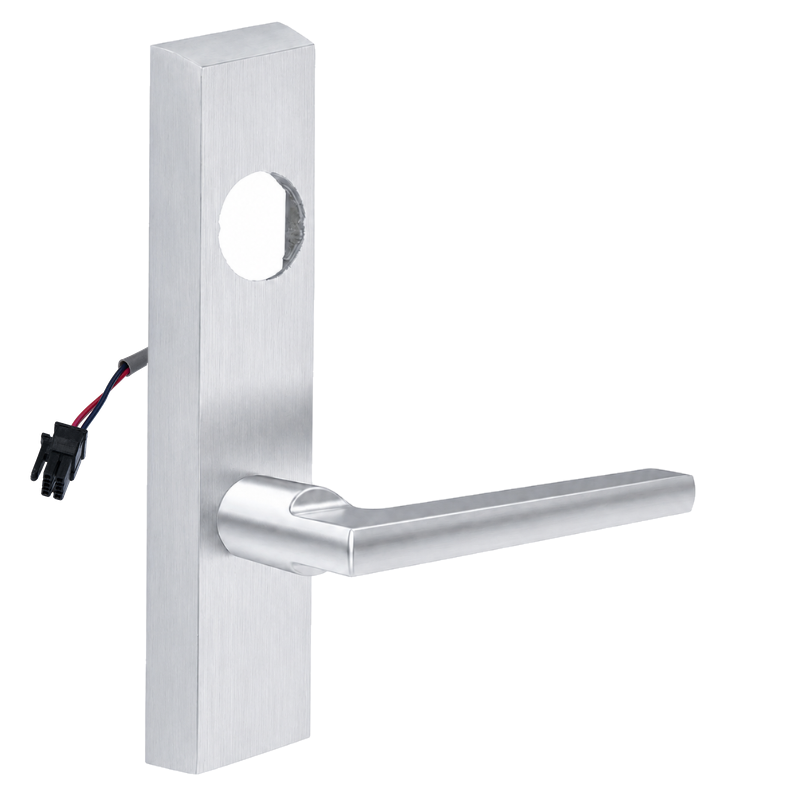

Sargent LC-776-8-ETMD-12V Electrified Lever Trim, "ET" MD Lever, Key Retracts Latch, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-776-8-ETMD-12V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices and combines secure access control with dependable mechanical egress. This trim features the "ET" MD lever design, key retracts latch function, and field-selectable fail safe/fail secure operation within a 10.2V-26.4V range. Built as a less cylinder configuration, the LC-776-8-ETMD-12V is a practical choice for retrofit and new openings where electrified lever trim is needed to integrate with compatible Sargent exit device platforms.

Features

• Sargent LC-776-8-ETMD-12V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• The trim includes the "ET" MD lever design for a consistent appearance and grip style.
• The key retracts latch function allows keyed operation to retract the latch.
• Fail safe/fail secure operation is field selectable for flexible access control setup.
• The unit operates across a 10.2V-26.4V voltage range.
• This model is supplied less cylinder for applications requiring a separately provided cylinder.

Functional Details

This electrified trim provides outside access control while working with the paired exit device for safe egress from the inside. The key retracts latch function allows mechanical key operation, and the trim can be configured for either fail safe or fail secure behavior depending on the opening requirements and power condition strategy.

• Field selectable for fail safe or fail secure.
• Operates on 12 or 24 volt AC/DC.
• Key retracts latch.

Included Components

The LC-776-8-ETMD-12V trim is supplied less cylinder and is intended for use with compatible Sargent 8800, 8888, 8500, and NB8700 Series exit devices. Cylinder components are not included.
