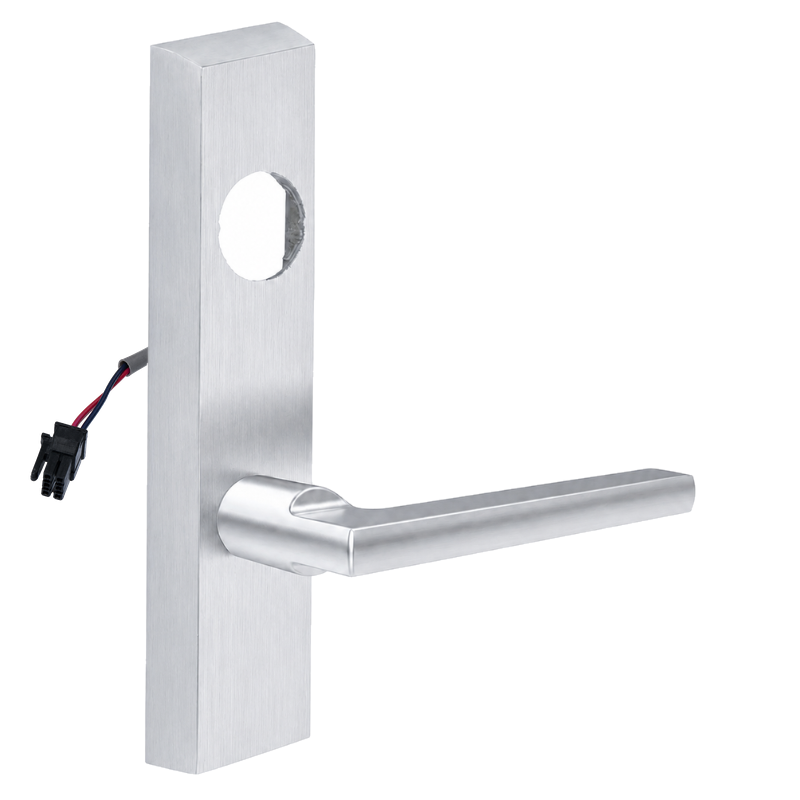

Sargent LC-776-8-ETMD-24V Electrified Lever Trim, "ET" MD Lever, Key Retracts Latch, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-776-8-ETMD-24V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices, providing controlled outside access in a durable trim package. This configuration features the "ET" MD lever, key retracts latch function, and field-selectable fail safe/fail secure operation. Built for 24V applications with an operating range of 10.2V-26.4V, the LC-776-8-ETMD-24V helps support flexible access control integration while maintaining reliable exit device performance. This trim is supplied less cylinder, making it a practical choice where cylinder preparation is required to match existing keying systems.

Features

• Sargent LC-776-8-ETMD-24V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• This trim includes the "ET" MD lever design for controlled access applications.
• The key retracts latch function allows latch retraction by key operation.
• Fail safe/fail secure operation is field selectable to suit system requirements.
• The trim operates on 24V systems with an input range of 10.2V to 26.4V.
• This model is supplied less cylinder for compatibility with existing cylinder keying plans.

Functional Details

This electrified trim is used to control the outside lever of the exit device while preserving free egress from the inside. The key retracts latch function allows mechanical key operation, and the trim can be configured for either fail safe or fail secure behavior depending on the access control requirement.

• Available in fail secure or fail safe.
• Field reversible handing.
• Key retracts latch.
• Operates on 12 or 24 volts DC.

Included Components

This Sargent LC-776-8-ETMD-24V electrified lever trim is supplied less cylinder. Cylinder and related keying components are not included and must be provided separately as required for the opening.
