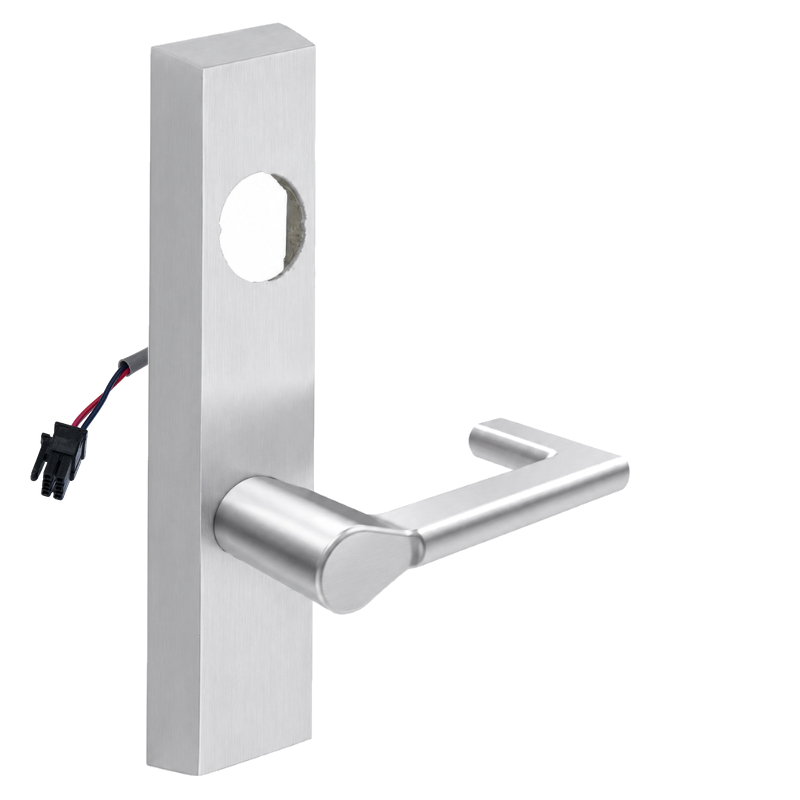

Sargent LC-776-8-ETND-12V Electrified Lever Trim, "ET" ND Lever, Key Retracts Latch, Fail Safe/Fail Sec, 10.2V-26.4V, 8800, 8888, 8500, & NB8700 Series Exit Devices, Less Cylinder

The Sargent LC-776-8-ETND-12V Electrified Lever Trim is designed for use with 8800, 8888, 8500, and NB8700 Series exit devices, providing controlled access with an "ET" ND lever and key retracts latch function. This trim supports both fail safe and fail secure operation and accepts 10.2V-26.4V input for flexible electrified opening applications. The LC-776-8-ETND-12V configuration is supplied less cylinder, making it a practical choice when cylinder components are specified separately. Built for compatibility with Sargent exit device systems, this electrified lever trim delivers dependable performance for commercial door openings that require secure access control and mechanical key override.

Features

• Sargent LC-776-8-ETND-12V electrified lever trim is made for 8800, 8888, 8500, and NB8700 Series exit devices.
• This model includes the "ET" ND lever trim configuration.
• The key retracts latch function provides mechanical latch retraction by key operation.
• The trim supports both fail safe and fail secure operation.
• The operating voltage range is 10.2V to 26.4V.
• This unit is supplied less cylinder.

Functional Details

This electrified trim allows the outside lever to be electrically controlled for access while maintaining compatibility with listed Sargent exit device series. The key retracts latch function provides an added mechanical override, and the trim can be configured for either fail safe or fail secure behavior depending on the application requirements.

• Available in 12 or 24 volt
• Field selectable fail safe/fail secure
• Key retracts latch
• Solenoid draws current only when activated
• Electrified trim can be ordered for all functions and all escutcheon and lever styles

Included Components

This LC-776-8-ETND-12V electrified lever trim is supplied less cylinder. Cylinder components are not included and must be ordered separately when required for the opening.
