Description

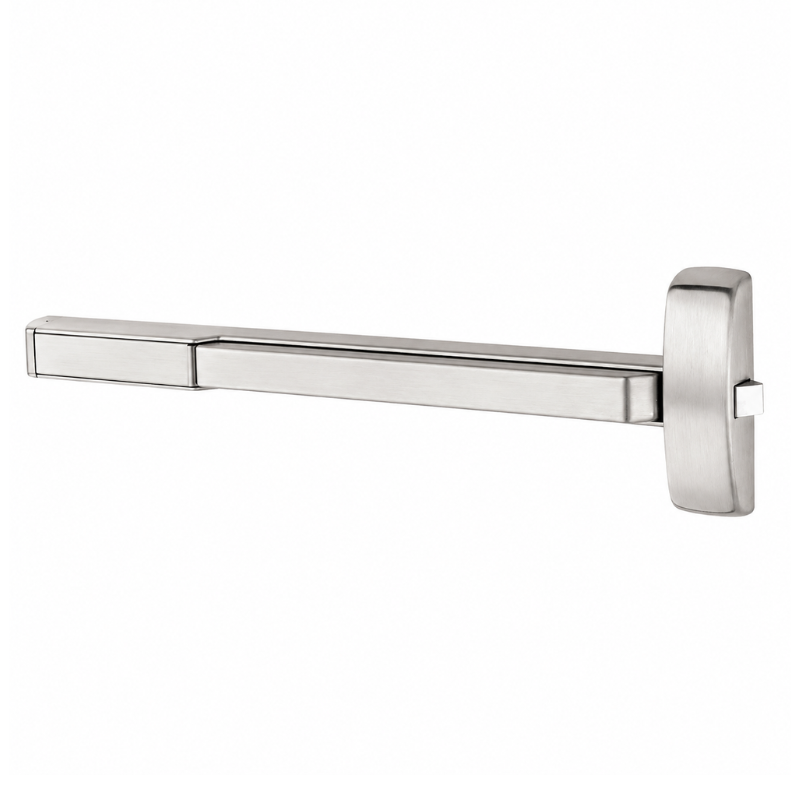

Sargent PE8810-E Wide Stile Rim Exit Device, Dummy-Function, Exit Only, 26"-32" Inch Door, Hex Key Dogging, Reversible Non-Handed, Grade 1
The Sargent PE8810-E Wide Stile Rim Exit Device is a Grade 1 exit device built for 26"-32" inch door applications where a durable dummy-function, exit only configuration is required. This PE8810-E model is designed for wide stile rim installations and includes hex key dogging for convenient hold-open operation when permitted by code. Its reversible non-handed design helps simplify ordering and installation, while the rugged construction supports dependable performance in demanding commercial openings. For projects that need a compact-width rim exit device with trusted Sargent quality, this exit only unit offers a practical and code-oriented solution.
Features
-
Sargent PE8810-E wide stile rim exit device is designed for 26"-32" inch door openings.
-
Dummy-function, exit only configuration provides egress operation for the specified opening condition.
-
Hex key dogging allows the push bar to be held in the depressed position when dogging is allowed.
-
Reversible non-handed construction supports flexible installation and easier field handling.
-
Grade 1 classification is suited for demanding commercial applications.
Functional Details
This dummy-function, exit only rim device is intended for applications where the device is used on the egress side without trim operation as specified for the opening. The PE8810-E uses a rim exit device configuration for wide stile doors and incorporates dogging to hold the touchpad down for free passage when appropriate for the door and code requirements.
-
Devices are non-handed and field reversible.
-
Hex key dogging is standard on mechanical devices.
-
Sized for 2'-2" to 3'-0" doors.
-
UL listed for Accident Hazard.
-
ANSI/BHMA A156.3 Grade 1.
Included Components
The device is supplied as a Sargent PE8810-E wide stile rim exit device with standard hex key dogging. It is furnished in a reversible non-handed configuration for field adjustment and installation on the appropriate opening.
Rail Sizes
| Stock Size | Door Opening Widths | Remarks |
| E | 24" to 32" (61 cm to 81 cm) | No cutting required for 32" (81 cm) door |
| F | 32.5" to 36" (84 cm to 91 cm) | No cutting required for 36" (91 cm) door |
| J | 36.5" to 42" (94 cm to 107 cm) | No cutting required for 42" (107 cm) door |
| G | 42.5" to 48" (110 cm to 122 cm) | No cutting required for 48" (122 cm) door |
Product Specifications
|
Manufacturer |
Sargent |
|---|---|
|
Series |
PE80 Series |
|
Model |
PE8810-E |
|
SKU |
PE-8810-E |
|
Product Type |
Wide Stile Rim Exit Device |
|
Function |
Dummy-Function |
|
Operation |
Exit Only |
|
Door Size |
26"-32" Inch Door |
|
Dogging |
Hex Key Dogging |
|
Handing |
Reversible Non-Handed |
|
Grade |
Grade 1 |
|
ANSI Number |
A156.3 |
|
UL Listing Type |
Accident Hazard |
|
Unit of Measure |
Each |
|
Origin |
United States |
|
BAA Qualified |
Yes |
|
Limited Warranty |
10 Year Limited Warranty |
Technical Specifications
|
Manufacturer |
Sargent |
|---|---|
|
Series |
PE80 Series |
|
Model |
PE8810-E |
|
Device Type |
Rim Exit Device |
|
Stile Type |
Wide Stile |
|
Function Type |
Dummy-Function |
|
Egress Operation |
Exit Only |
|
Minimum Door Width |
26 in. |
|
Maximum Door Width |
32 in. |
|
Dogging Type |
Hex Key Dogging |
|
Handing |
Reversible Non-Handed |
|
ANSI/BHMA Grade |
Grade 1 |
|
ANSI/BHMA Standard |
A156.3 |
|
UL Listing |
Accident Hazard |
