Description

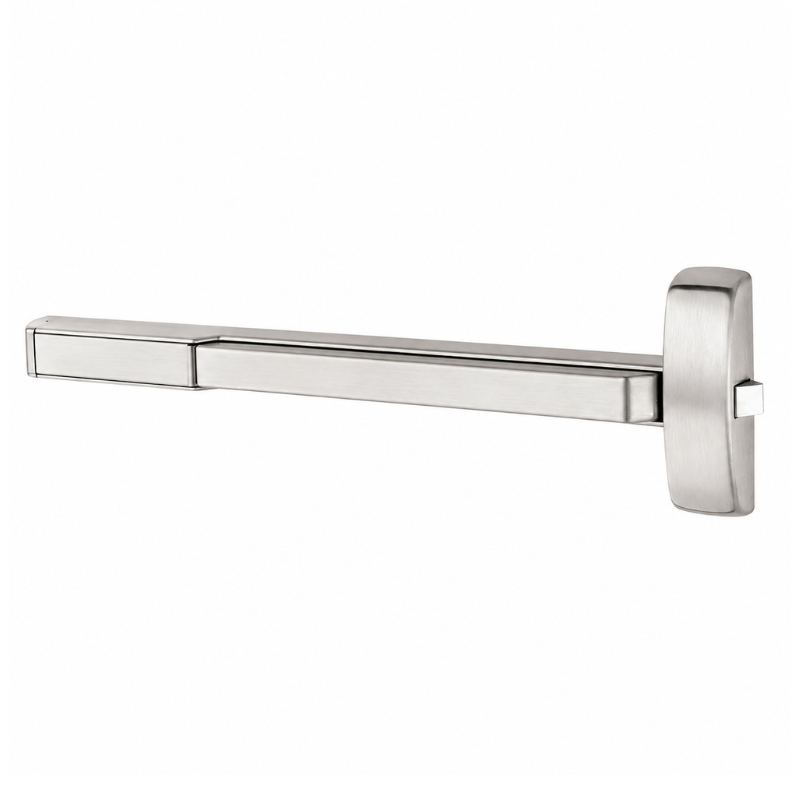

Sargent PE8810-F Wide Stile Rim Exit Device, Dummy-Function, Exit Only, 32.5"-36" Inch Door, Hex Key Dogging, Reversible Non-Handed, Grade 1
The Sargent PE8810-F Wide Stile Rim Exit Device is a Grade 1 exit device designed for 32.5"-36" inch doors where dependable exit-only operation is required. This dummy-function rim device is built for wide stile applications and features hex key dogging for convenient hold-open capability when permitted. Its reversible non-handed design helps simplify installation and field preparation, making it a practical choice for commercial openings. As part of the PE80 Series, the PE8810-F combines durable construction, code-oriented performance, and reliable egress in a rim exit device configuration suited for demanding institutional, commercial, and public building environments.
Features
-
Sargent PE8810-F wide stile rim exit device configuration is designed for commercial exit applications.
-
Dummy-function operation provides exit only use at the opening.
-
Sized for 32.5"-36" inch door applications.
-
Hex key dogging allows the push rail to be held in the depressed position when authorized.
-
Reversible non-handed construction supports flexible installation.
-
Grade 1 performance is suited for high-use commercial environments.
-
Rim exit device design is part of the Sargent PE80 Series.
Functional Details
Dummy-function, exit only operation is intended for openings where egress is required without outside trim operation through the device. In this configuration, the device provides push-pad actuation for exit use, while the rim latch secures the door in the closed position. Hex key dogging allows the bar to be held down for free passage when local code and application requirements permit.
-
Single point rim latching
-
Device is non-handed
-
Hex key dogging
-
For use on 1-3/4" thick standard doors
Included Components
This exit device includes the rim device assembly with hex key dogging as specified for the PE8810-F configuration. Trim is not included in the dummy-function, exit only device description.
Rail Sizes
| Stock Size | Door Opening Widths | Remarks |
| E | 24" to 32" (61 cm to 81 cm) | No cutting required for 32" (81 cm) door |
| F | 32.5" to 36" (84 cm to 91 cm) | No cutting required for 36" (91 cm) door |
| J | 36.5" to 42" (94 cm to 107 cm) | No cutting required for 42" (107 cm) door |
| G | 42.5" to 48" (110 cm to 122 cm) | No cutting required for 48" (122 cm) door |
Product Specifications
|
Manufacturer |
Sargent |
|
Series |
PE80 Series |
|
Model |
PE8810-F |
|
SKU |
PE-8810-F |
|
Product Type |
Wide Stile Rim Exit Device |
|
Function |
Dummy-Function, Exit Only |
|
Door Size |
32.5"-36" Inch Door |
|
Dogging |
Hex Key Dogging |
|
Handing |
Reversible Non-Handed |
|
Grade |
Grade 1 |
|
ANSI Number |
A156.3 |
|
UL Listing Type |
UL Listed for Panic Exit Hardware |
|
Unit of Measure |
Each |
|
Door Type |
Wide stile door applications |
|
Door Thickness |
1-3/4" standard |
|
Limited Warranty |
10 Year Limited Warranty |
Technical Specifications
|
Series |
PE80 |
|
Model |
PE8810-F |
|
Device Type |
Rim Exit Device |
|
Function Type |
Dummy, Exit Only |
|
Latch Type |
Single point rim latching |
|
Handing |
Non-handed, reversible |
|
Dogging Type |
Hex key dogging |
|
Door Width Range |
32.5"-36" |
|
Standard Door Thickness |
1-3/4" |
|
Performance Grade |
Grade 1 |
|
ANSI Standard |
A156.3 |
|
UL Category |
Panic Exit Hardware |
|
Application |
Wide stile |
|
Operation |
Exit only |
