Description

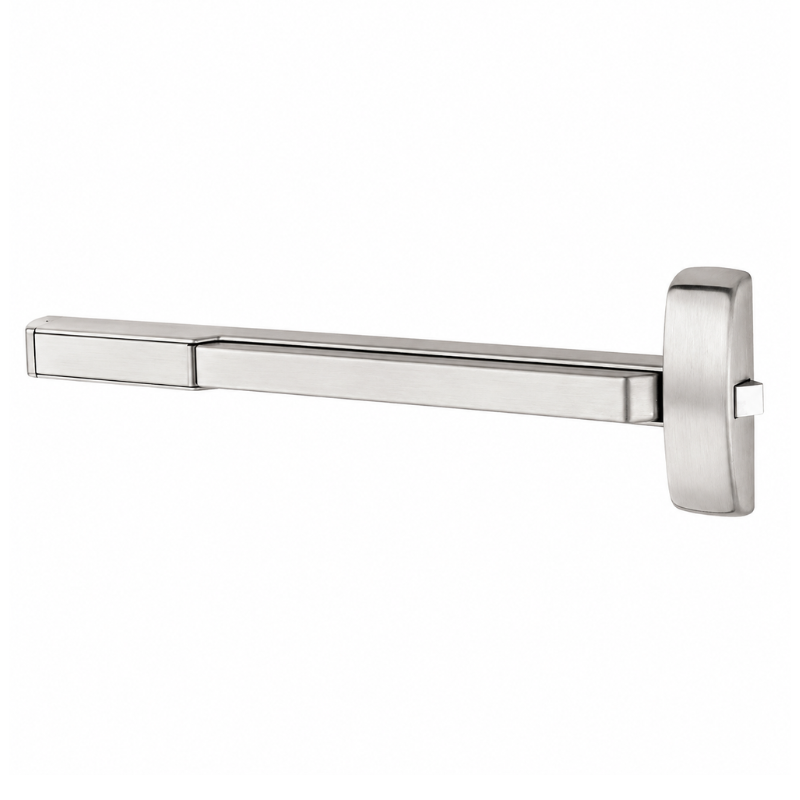

Sargent PE8810-G Wide Stile Rim Exit Device, Dummy-Function, Exit Only, 42.5"-48" Inch Door, Hex Key Dogging, Reversible Non-Handed, Grade 1
The Sargent PE8810-G Wide Stile Rim Exit Device is a Grade 1 exit only solution designed for 42.5"-48" inch doors where durable egress hardware and dependable performance are required. This dummy-function rim exit device is built for wide stile applications and features hex key dogging for convenient hold-open operation when permitted. The PE8810-G is reversible non-handed, helping simplify installation and field preparation. As part of Sargent’s PE80 Series, it is engineered for commercial openings that need reliable exit device construction, code-focused operation, and the trusted performance expected from a Grade 1 wide stile rim exit device.
Features
-
Sargent PE8810-G wide stile rim exit device configuration is designed for commercial door openings requiring rim device operation.
-
Dummy-function, exit only design provides egress hardware configuration as specified in the product title.
-
Sized for 42.5"-48" inch door applications.
-
Hex key dogging allows the push bar to be held in the depressed position when dogging is allowed.
-
Reversible non-handed construction supports flexible installation and field handling.
-
Grade 1 construction is built for high-use commercial applications.
Functional Details
This PE8810-G dummy-function, exit only rim exit device is intended for applications where the specified function and egress configuration are required. Hex key dogging allows the touchpad to remain retracted for free passage operation when authorized and permitted by code.
-
Outside trim optional.
-
Device is field reversible.
-
Hex key dogging is standard.
-
UL listed for accident hazard.
-
ANSI/BHMA A156.3 Grade 1.
Included Components
The device is supplied as a Sargent PE8810-G wide stile rim exit device body with standard hex key dogging. Outside trim is optional and ordered separately when required for the opening.
Rail Sizes
| Stock Size | Door Opening Widths | Remarks |
| E | 24" to 32" (61 cm to 81 cm) | No cutting required for 32" (81 cm) door |
| F | 32.5" to 36" (84 cm to 91 cm) | No cutting required for 36" (91 cm) door |
| J | 36.5" to 42" (94 cm to 107 cm) | No cutting required for 42" (107 cm) door |
| G | 42.5" to 48" (110 cm to 122 cm) | No cutting required for 48" (122 cm) door |
Product Specifications
|
Manufacturer |
Sargent |
|---|---|
|
Series |
PE80 Series |
|
Model |
PE8810-G |
|
SKU |
PE-8810-G |
|
Product Type |
Wide Stile Rim Exit Device |
|
Function |
Dummy-Function, Exit Only |
|
Door Width Compatibility |
42.5"-48" Inch Door |
|
Dogging |
Hex Key Dogging |
|
Handing |
Reversible Non-Handed |
|
Grade |
Grade 1 |
|
ANSI Number |
ANSI/BHMA A156.3 |
|
Unit of Measure |
Each |
Technical Specifications
|
Manufacturer |
Sargent |
|---|---|
|
Series |
PE80 Series |
|
Model |
PE8810-G |
|
Device Type |
Rim Exit Device |
|
Stile Type |
Wide Stile |
|
Function Type |
Dummy-Function |
|
Operation |
Exit Only |
|
Minimum Door Width |
42.5" |
|
Maximum Door Width |
48" |
|
Dogging Type |
Hex Key Dogging |
|
Handing |
Reversible Non-Handed |
|
Performance Grade |
Grade 1 |
|
ANSI Standard |
A156.3 |
