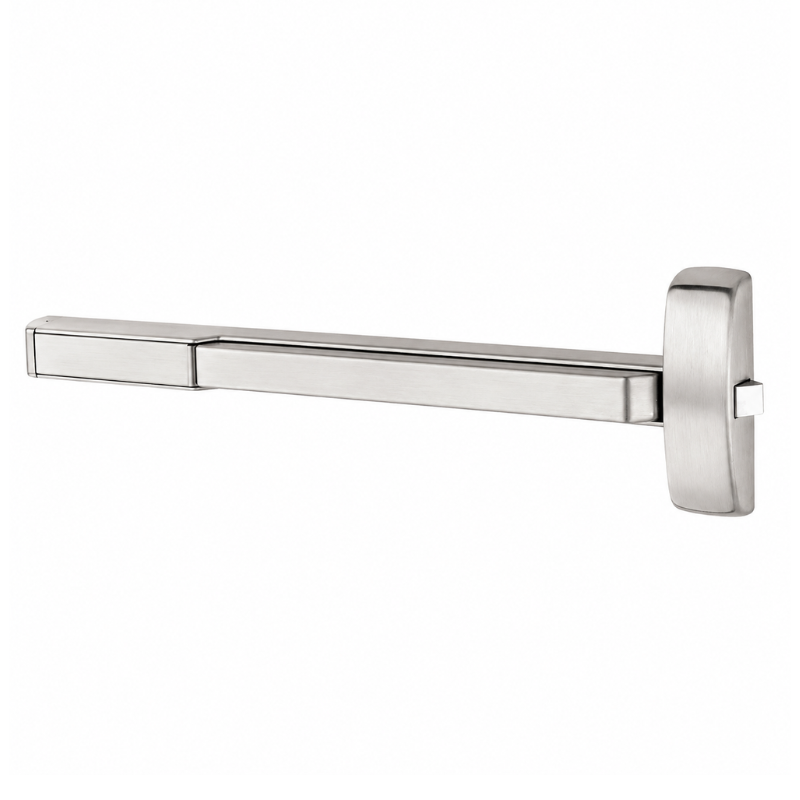

Sargent PE8810-J Wide Stile Rim Exit Device, Dummy-Function, Exit Only, 36.5"-42" Inch Door, Hex Key Dogging, Reversible Non-Handed, Grade 1

The Sargent PE8810-J Wide Stile Rim Exit Device is a Grade 1 exit hardware solution designed for 36.5"-42" inch doors in commercial openings where dependable egress is required. This dummy-function, exit only device is built for wide stile applications and features hex key dogging for convenient hold-open operation when permitted. Its reversible non-handed design helps simplify installation and field preparation. As part of the PE80 Series, the PE8810-J combines durable construction, code-oriented performance, and practical operation for facilities that need a reliable rim exit device with the strength and service life expected from Sargent commercial door hardware.

Features

• PE8810-J configuration provides a wide stile rim exit device layout for commercial door applications.

• Dummy-function, exit only operation is intended for egress use without outside trim operation included.

• Sized for 36.5"-42" inch door openings as specified in the title.

• Hex key dogging allows the push bar to be held in the depressed position for traffic flow control where dogging is permitted.

• Reversible non-handed construction supports easier installation and field flexibility.

• Grade 1 classification meets demanding commercial performance requirements.

Functional Details

This dummy-function, exit only rim device is designed to provide egress from the inside while relying on compatible trim or door conditions on the opposite side as required by the opening. The hex key dogging feature allows authorized users to keep the device in a dogged position for push-pull traffic during appropriate periods of use.

• UL listed for Accident Hazard.

• UL listed for Fire Exit Hardware.

• Meets ANSI/BHMA A156.3 Grade 1.

• Devices are non-handed.

• Field sizable.

• Single point rim latching.

Included Components

This Sargent PE8810-J exit device is supplied as a rim exit device with hex key dogging. Outside trim, cylinders, and additional accessories are specified separately unless otherwise noted for the opening.

Rail Sizes
