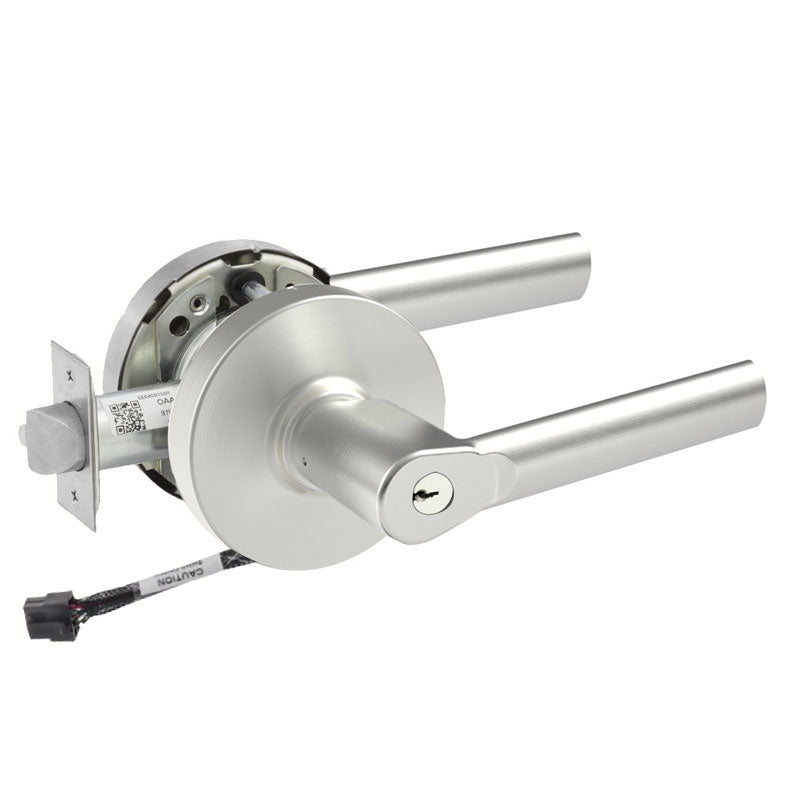

Sargent RX-10XG04-LMB-24V-KD Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MB Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG04-LMB-24V-KD is a Grade 1 storeroom function cylindrical lock engineered for high-traffic commercial openings that demand durability and reliable access control. This model includes an integrated Request to Exit (RX) switch, allowing it to communicate door status to access control and monitoring systems. It features the LMB design with the L rose and MB lever, a 2-3/4" backset, and a 4-7/8" strike. Operating on 24V, this keyed random configuration ships with two keys and uses the LA keyway. Built to ANSI/BHMA standards, it delivers dependable performance and security for institutional, educational, and commercial environments.

Features

• Grade 1 heavy-duty cylindrical lever lock built for demanding commercial applications.
• Storeroom function keeps the outside lever locked at all times, with key access from outside.
• Integrated Request to Exit (RX) switch signals egress to access control systems.
• L rose and MB lever design in the LMB lever/rose configuration.
• 2-3/4" backset with a 4-7/8" strike for standard door prep.
• Operates on 24V for compatibility with electrified hardware systems.
• Keyed random with two keys supplied using the LA keyway.

Functional Details

The storeroom (G04) function keeps the outside lever permanently locked, requiring a key to unlock and enter. The inside lever always allows free egress, and the Request to Exit switch monitors that egress for integration with security systems.

• Outside lever is always fixed. Entrance by key only. Auxiliary latch deadlocks latchbolt. Inside lever always free.
