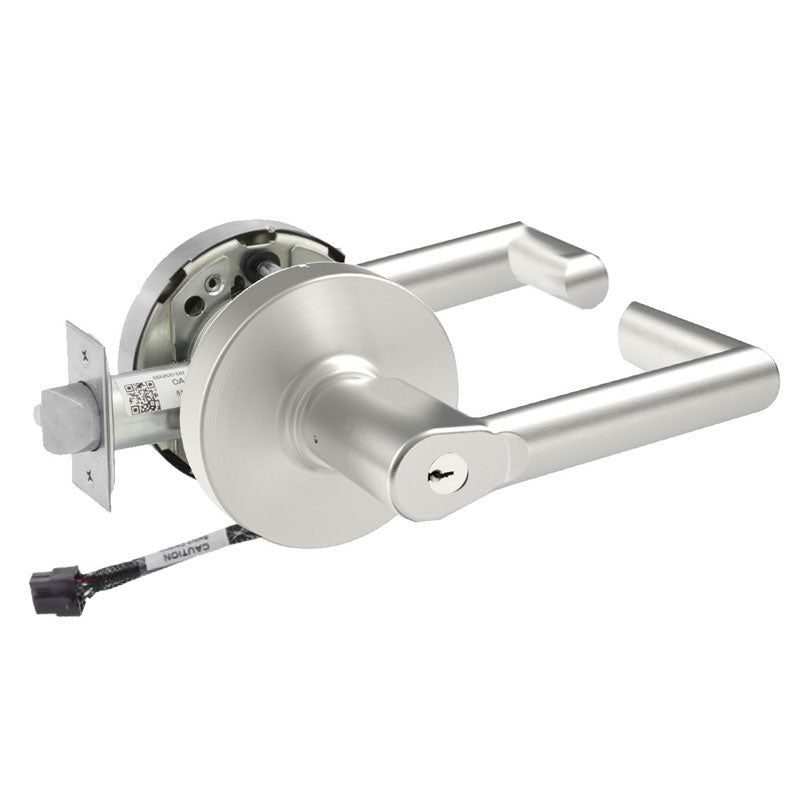

Sargent RX-10XG04-LMW-12V-KD Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG04-LMW-12V-KD is a Grade 1 storeroom function cylindrical lock built for demanding commercial openings where reliability and access monitoring matter. It features an integrated Request to Exit (RX) switch that signals when the lever is turned, making it ideal for facilities that need to track egress activity through an access control or alarm system. This model pairs the L rose with the MW lever and operates on 12V power. It ships keyed random with two keys in the LA keyway, and includes a 2-3/4" backset with a 4-7/8" strike. Durable construction and ANSI/BHMA A156.2 Grade 1 certification make it a dependable choice for schools, offices, and institutional buildings.

Features

• Storeroom function keeps the outside lever locked at all times, requiring a key for entry.
• Built-in Request to Exit switch monitors lever operation for access control integration.
• MW lever paired with the L rose provides a clean, modern appearance.
• Operates on 12V DC power for compatibility with electrified access systems.
• Supplied keyed random with two keys in the LA keyway.
• 2-3/4" backset and 4-7/8" strike for standard commercial door prep.
• ANSI/BHMA A156.2 Series 4000 Grade 1 rated for heavy-duty use.

Functional Details

The storeroom function with Request to Exit provides secure, key-controlled entry while continuously monitoring egress. The outside lever remains locked at all times and requires a key to enter, while the inside lever always allows free egress. The RX switch activates whenever the inside lever is operated, sending a signal to the connected system.

• Outside lever is always fixed/rigid; key retracts the latchbolt.
• Inside lever is always free for immediate egress.
• Latchbolt is deadlocked when door is closed.
