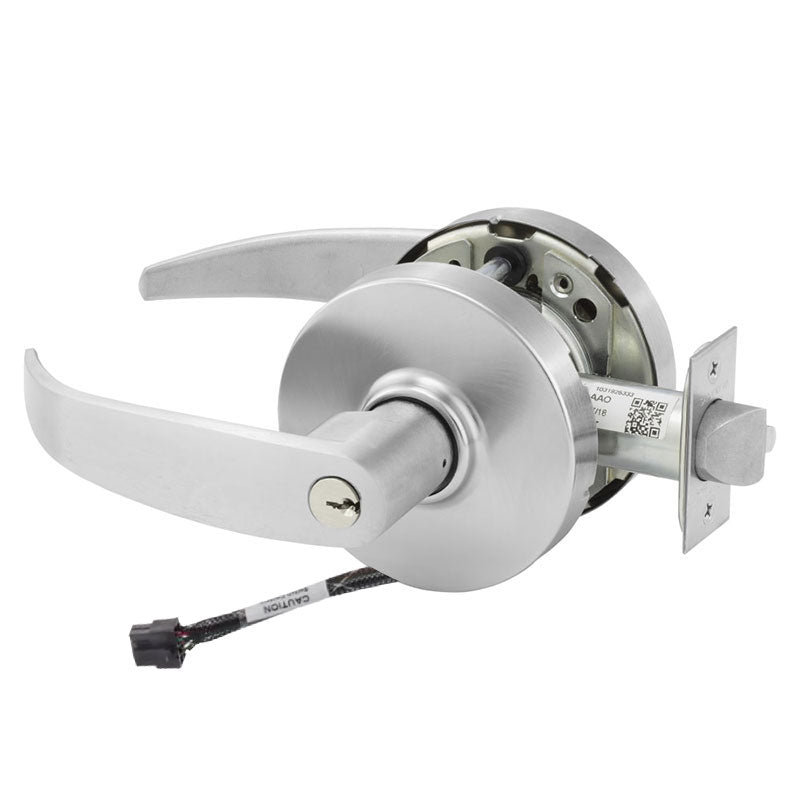

Sargent RX-10XG04-LP-24V-KD Storeroom Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG04-LP-24V-KD is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings where security and reliable access control matter. Featuring an integrated Request to Exit (RX) switch, this lock communicates lever movement back to an access control or monitoring system, making it ideal for electronically managed doors. It ships with the LP trim design—L rose and P lever—paired with an LA keyway and comes keyed random with two keys. Designed with a 2-3/4" backset and a 4-7/8" strike, it operates on 24V and delivers the durability Sargent's 10X Line is known for in institutional and commercial settings.

Features

• Storeroom function keeps the outside lever locked at all times, requiring a key for entry while allowing free egress.
• Integrated Request to Exit (RX) switch signals lever activation to connected access control systems.
• Grade 1 certified for the highest level of commercial durability and performance.
• LP trim configuration with L rose and P lever for a clean, ergonomic appearance.
• LA keyway, keyed random, supplied with two keys.
• Standard 2-3/4" backset with a 4-7/8" strike plate for consistent installation.
• Operates on 24V for compatibility with electrified hardware systems.

Functional Details

The storeroom function (G04) locks the outside lever continuously. Entry is only possible with a valid key, while the inside lever always allows free egress. The RX switch monitors lever movement for integration with access control and alarm systems.

• Outside lever is always fixed/rigid.
• Entrance by key only.
• Rotating inside lever always retracts latchbolt for immediate egress.
• Auxiliary latchbolt deadlocks the latchbolt when the door is closed.
