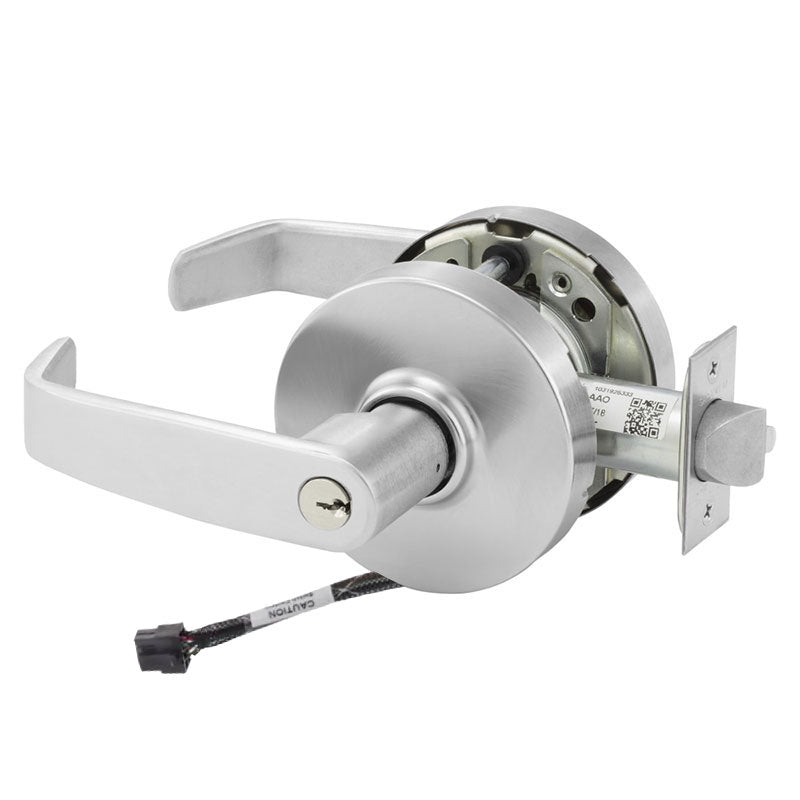

Sargent RX-10XG05-LL-12V-KD Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, L Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG05-LL-12V-KD is a Grade 1 cylindrical lever lock built for high-traffic commercial openings that require both secure access and reliable monitoring. Designed for entrance or office function, it features an integrated Request to Exit (RX) switch that signals when the lever is operated, making it ideal for access control and alarm integration. This model comes with the L rose and L lever design, a 2-3/4" backset, and a 4-7/8" strike. It uses the LA keyway and ships keyed random with two keys. Operating on 12V, it delivers durable, dependable performance in schools, offices, and institutional facilities where controlled entry and exit monitoring matter.

Features

• Grade 1 cylindrical lever lock rated for heavy commercial use.
• Entrance or office function for flexible access control.
• Integrated Request to Exit (RX) switch for monitoring lever operation.
• L rose and L lever styling for a clean, modern appearance.
• 2-3/4" backset with a 4-7/8" strike for standard door prep.
• LA keyway, keyed random, supplied with two keys.
• Operates on 12V for electrified access system compatibility.

Functional Details

The entrance or office function allows the lock to be secured or left open as needed, while the built-in Request to Exit switch detects lever movement and sends a signal to the access control or alarm system when someone exits.

• Latchbolt operated by lever from either side except when outside lever is locked by turn/push button inside.
• Turn/push button locking; requires rotating inside lever, closing door or using key outside to release button.
• Auxiliary latch deadlocks latchbolt when door is closed.
