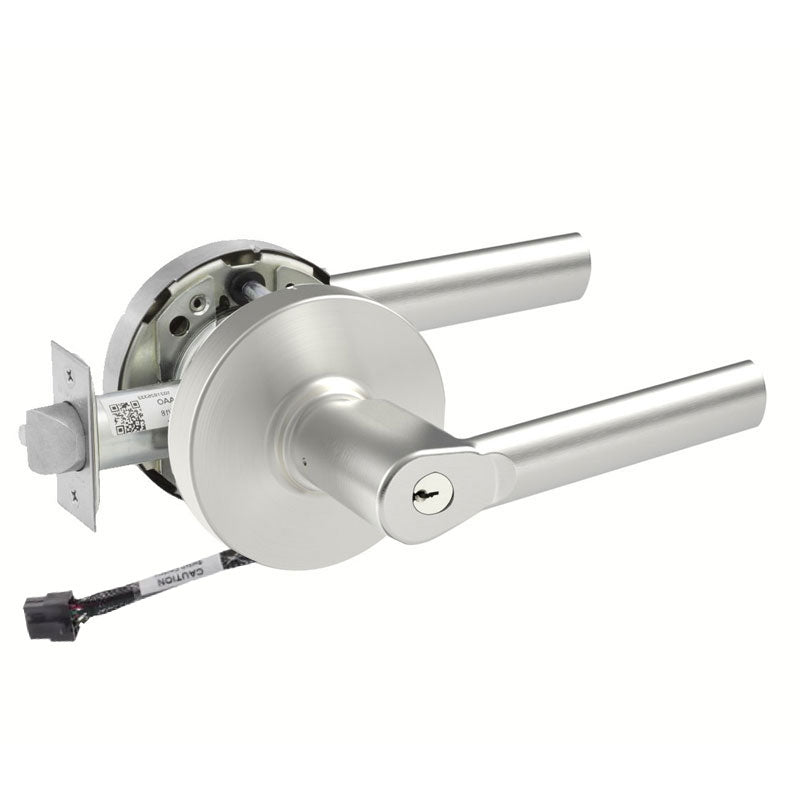

Sargent RX-10XG05-LMB-24V-KD Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MB Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG05-LMB-24V-KD is a Grade 1 cylindrical lever lock built for high-traffic commercial openings that require both security and electronic monitoring. Configured for Entrance or Office function, it lets occupants secure or free-access the door as needed while an integrated Request to Exit (RX) switch signals when the lever is operated. Operating on 24V, this lock features the durable LMB lever with L rose, a 2-3/4" backset, and a 4-7/8" strike. It ships keyed random with the LA keyway and two keys included, making it a dependable choice for offices, institutions, and access-controlled entryways where reliable exit signaling matters.

Features

• Grade 1 cylindrical construction rated for heavy-duty commercial use.
• Entrance or Office function allows the door to be locked or left in free-access mode.
• Integrated Request to Exit (RX) switch signals when the inside lever is turned.
• Operates on 24V for compatibility with access control systems.
• LMB lever paired with the L rose for a clean, durable trim design.
• 2-3/4" standard backset and 4-7/8" ANSI strike for common door prep.
• Supplied with the LA keyway, keyed random, and two keys included.

Functional Details

The Entrance or Office (G05) function provides flexible control at the opening, allowing the outside lever to be locked or unlocked by key while the inside lever always retracts the latch for free egress. The Request to Exit feature adds an electronic signal that reports lever activation to the connected system.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• When outside lever is locked, latchbolt is operated by key outside or by rotating inside lever.
• Inside lever always free for immediate egress.
