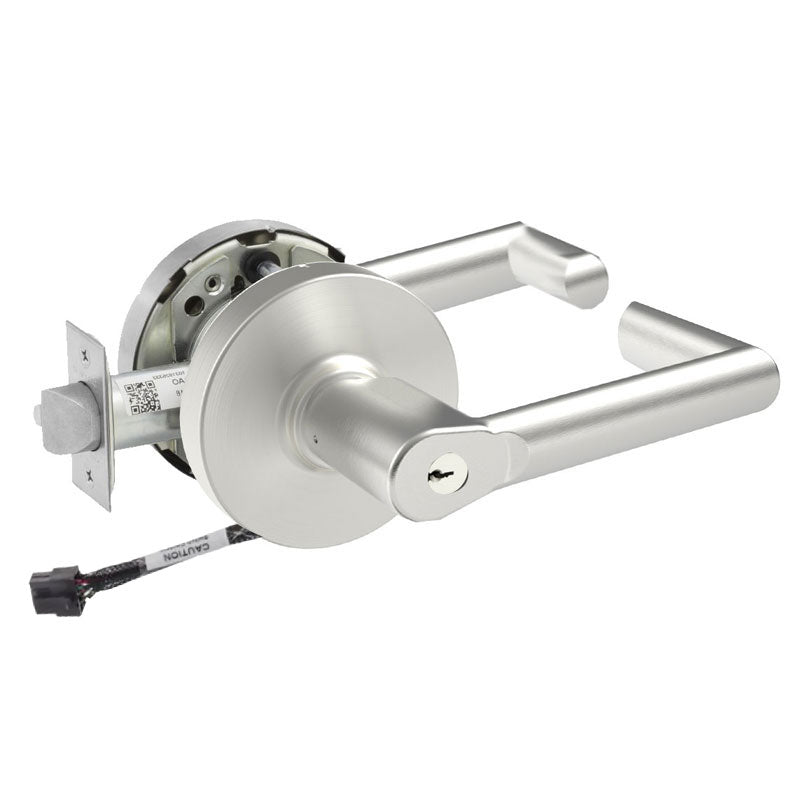

Sargent RX-10XG05-LMW-12V-KD Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG05-LMW-12V-KD is a Grade 1 cylindrical lever lock built for high-traffic commercial openings that demand both security and monitoring capability. Designed for Entrance or Office function, it features an integrated Request to Exit (RX) switch that signals access control systems when the lever is operated. This model comes with the L Rose, MW lever, and a durable 12V electrical configuration, making it well-suited for offices, institutions, and secured entryways. It ships with an LA keyway, keyed random, and includes two keys. With a 2-3/4" backset and 4-7/8" strike, this lock delivers dependable long-term performance in demanding environments.

Features

• Grade 1 cylindrical lever lock for heavy-duty commercial use.
• Entrance or Office function provides flexible locking and access control.
• Integrated Request to Exit (RX) switch monitors lever operation.
• MW lever design paired with the L Rose for a clean, functional look.
• 12V electrical operation for compatibility with access control systems.
• LA keyway, keyed random, supplied with two keys.
• 2-3/4" backset and 4-7/8" strike for standard door prep.

Functional Details

The Entrance or Office (G05) function combines convenient locking control with a built-in Request to Exit switch, which sends a signal to the access control system whenever the inside lever is turned to exit. This allows monitored egress without unnecessary alarms.

• Latchbolt operated by lever from either side except when outside is locked by push button.
• Push button locking; unlocked by key outside, or by rotating inside lever or closing door.
• Auxiliary latch deadlocks latchbolt when door is closed.
