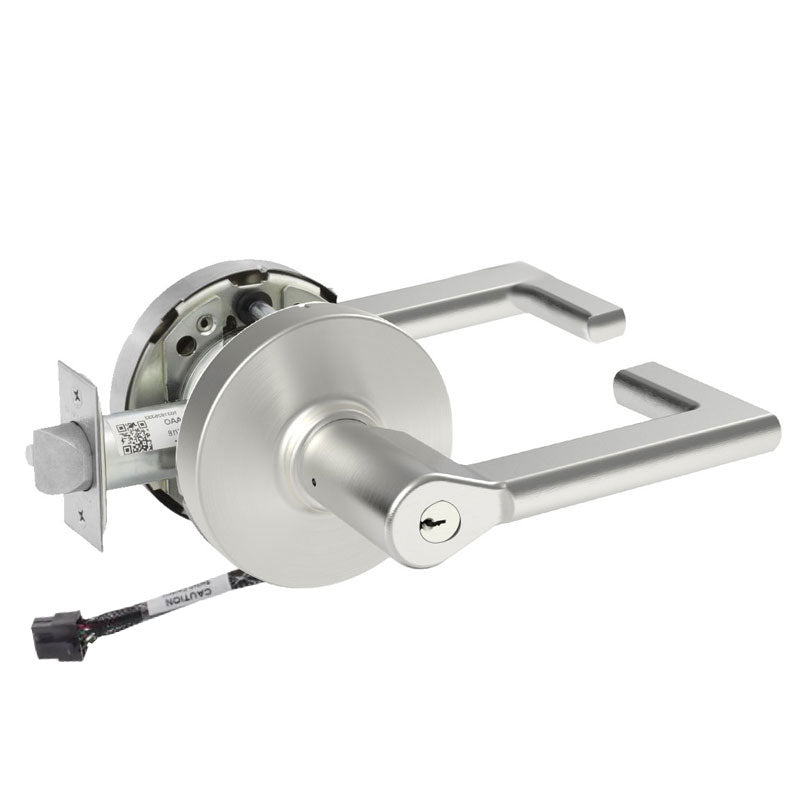

Sargent RX-10XG05-LND-12V-KD Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, ND Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG05-LND-12V-KD is a Grade 1 cylindrical lever lock built for high-traffic commercial openings that require both reliable access control and dependable exit signaling. Configured for Entrance or Office function, this lockset features an integrated Request-to-Exit (RX) switch that reports egress to an access control or monitoring system, making it ideal for secured entries and offices. It comes with the LND lever on the L rose, a 12V configuration, and an LA keyway keyed random with two keys. With its 2-3/4" backset and 4-7/8" strike, this lock delivers durable, code-compliant performance from Sargent's proven 10X Line.

Features

• Grade 1 cylindrical lever lock rated for heavy-duty commercial use.
• Integrated Request-to-Exit (RX) switch signals egress to monitoring systems.
• Entrance or Office function for flexible secured-access applications.
• LND lever mounted on the L rose for a clean, ergonomic profile.
• 2-3/4" standard backset with a 4-7/8" ANSI strike.
• LA keyway, keyed random, supplied with two keys.
• 12V configuration for compatibility with electrified access control.

Functional Details

The Entrance or Office function allows the outside lever to be locked or unlocked by key, while the inside lever always retracts the latch for free egress. The built-in Request-to-Exit switch senses inside lever movement and sends a signal, allowing the access control system to shunt alarms or track door usage during authorized exits.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• When outside lever is locked, latchbolt is retracted by key in outside lever or by rotating inside lever.
• Rotating inside lever activates the Request-to-Exit signal.
