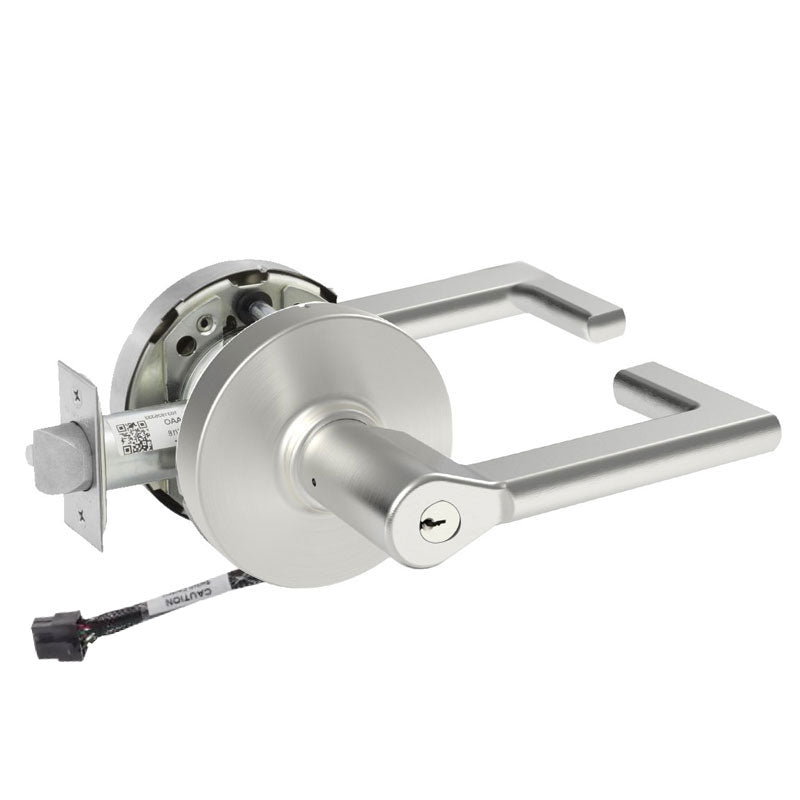

Sargent RX-10XG05-LND-24V-KD Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, ND Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG05-LND-24V-KD is a Grade 1 cylindrical lock built for high-traffic commercial openings that require both secure access and monitored egress. Configured for Entrance or Office function, it pairs the durable 10X Line chassis with an integrated Request to Exit (RX) switch and 24V electrical monitoring. This lock features the LND lever on an L rose, an LA keyway keyed random, and ships with two keys. With its 2-3/4" backset and 4-7/8" ANSI strike, it installs into standard door preparations. It's a dependable choice for facilities that need reliable latch control alongside access monitoring capability.

Features

• Entrance or Office function provides secure keyed access with the option to leave the latch unlocked for free passage.
• Integrated Request to Exit (RX) switch signals egress activity for access control monitoring.
• 24V electrical operation for compatibility with monitored building systems.
• LND lever mounted on the L rose for a clean, durable trim profile.
• Grade 1 rated for the highest ANSI/BHMA performance in commercial applications.
• LA keyway keyed random and supplied with two keys.
• Standard 2-3/4" backset with a 4-7/8" ANSI strike for straightforward installation.

Functional Details

The Entrance or Office (G05) function allows the outside lever to be locked or unlocked by key, while the inside lever always allows free egress. The built-in Request to Exit switch is triggered when the inside lever is operated, sending a signal to the access control system to indicate authorized exit.

• Turn/push button locking. Latchbolt operated by lever from either side except when outside lever is locked by turn/push button inside.
• Outside lever unlocked by key outside or by rotating inside lever.
• Auxiliary latch deadlocks latchbolt when door is closed.
