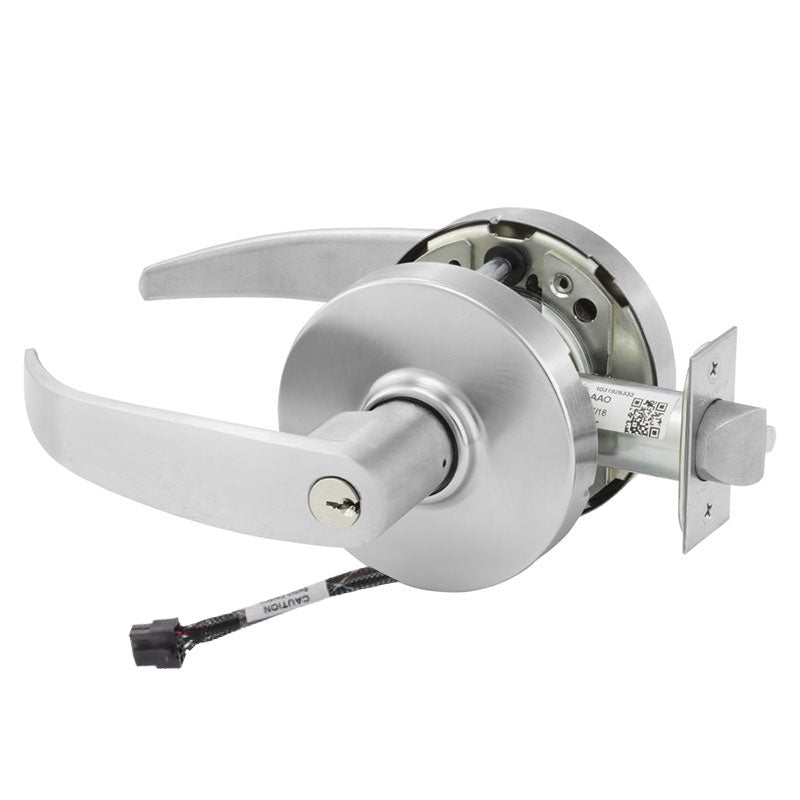

Sargent RX-10XG05-LP-24V-KD Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG05-LP-24V-KD is a Grade 1 cylindrical lever lock built for entrance and office applications where reliable access control and monitoring are required. This model features an integrated Request to Exit (RX) switch that signals when the lever is operated, making it a strong fit for access-controlled openings and electronic security systems. It comes with the LP lever design and L rose, a 2-3/4" backset, and a 4-7/8" strike. Powered at 24V and supplied with an LA keyway keyed random with two keys, this lock combines durable cylindrical construction with the smooth operation and long service life Sargent is known for in commercial environments.

Features

• Grade 1 cylindrical lever lock rated for heavy-duty commercial use.
• Entrance or Office function allows the outside lever to be locked or unlocked by key or thumbturn as needed.
• Built-in Request to Exit (RX) switch signals lever operation for access control integration.
• 24V operation for compatibility with electrified security systems.
• LP lever with L rose provides a clean, ergonomic profile.
• Standard 2-3/4" backset with a 4-7/8" strike for typical door prep.
• LA keyway keyed random and supplied with two keys.

Functional Details

The Entrance or Office function lets the outside lever be locked or unlocked, while the inside lever always allows free egress. The integrated Request to Exit switch reports lever movement back to the access control system, supporting monitored and controlled openings.

• Latchbolt operated by lever from either side except when outside lever is locked by key or turn/push button.
• Turn/push button locking: pushing and turning button locks outside lever, requiring use of key until button is manually unlocked.
• Auxiliary latch deadlocks latchbolt when door is closed.
