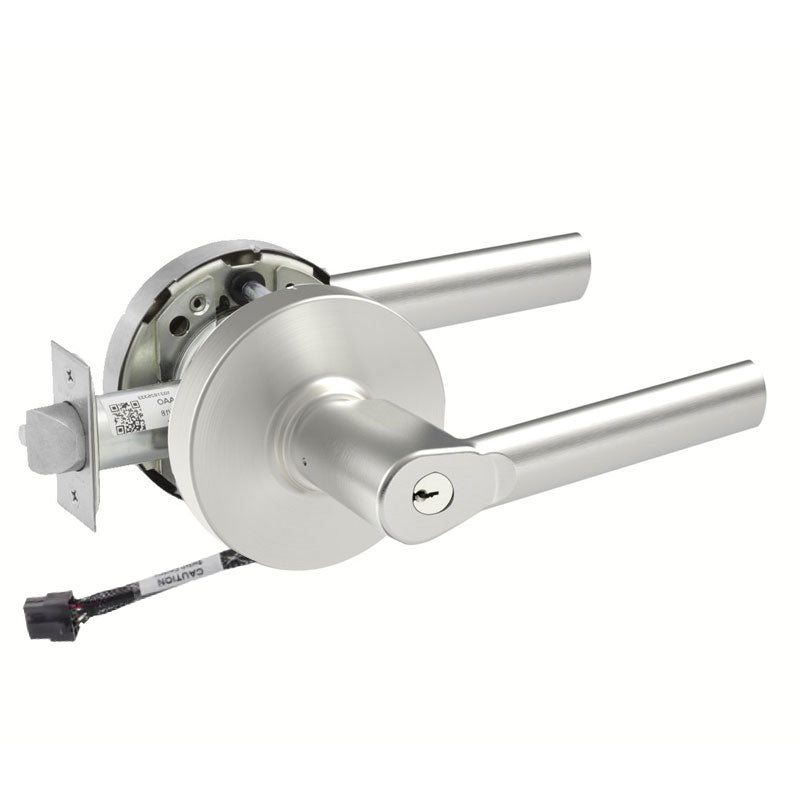

Sargent RX-10XG37-LMB-24V-KD Classroom Function Cylindrical Lock, Request to Exit, L Rose, MB Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG37-LMB-24V-KD is a Grade 1 classroom function cylindrical lock built for demanding institutional and commercial openings. It combines heavy-duty performance with an integrated Request to Exit (RX) switch, allowing the lock to signal access control systems when the lever is operated. This model features the L rose, MB lever design, a 2-3/4" backset, and a 4-7/8" ANSI strike, making it a reliable fit for schools, offices, and healthcare facilities. Supplied with the LA keyway keyed random and two keys, this 24V unit delivers dependable security and long-term durability where controlled access and monitored egress are essential.

Features

• Grade 1 cylindrical lever lock engineered for high-traffic commercial use.
• Classroom function allows the outside lever to be locked or unlocked by key while the inside lever always permits free egress.
• Integrated Request to Exit (RX) switch monitors lever operation for access control integration.
• Operates on 24V for compatibility with electrified door hardware systems.
• L rose paired with the MB lever for a durable, ergonomic design.
• 2-3/4" backset with a standard 4-7/8" ANSI strike.
• LA keyway supplied keyed random with two keys included.

Functional Details

The classroom function (G37) lets authorized personnel control access from the corridor side using a key, while the inside lever always allows immediate exit for safety. The built-in Request to Exit switch communicates lever activation to an access control panel, supporting monitored and secure openings.

• Latchbolt operated by lever from either side except when outside is locked by key.
• Outside lever locked and unlocked by key.
• Inside lever always free for immediate egress.

Included Components

This lockset ships with the MB lever, L rose trim, 4-7/8" ANSI strike, and two keys cut for the LA keyway keyed random.
