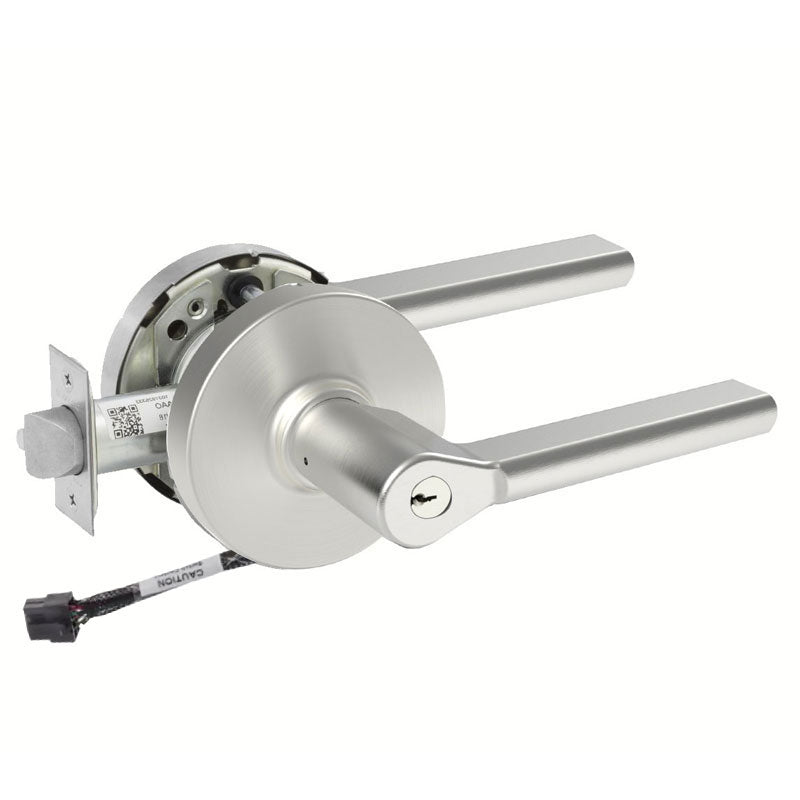

Sargent RX-10XG37-LMD-24V-KD Classroom Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG37-LMD-24V-KD is a Grade 1 classroom function cylindrical lock built for high-traffic commercial and institutional openings that require reliable access control. Featuring an integrated Request to Exit (RX) switch, this lockset communicates door status back to an access control or monitoring system, making it ideal for classrooms, offices, and secured corridors. It combines the durable LMD lever with the L rose design and operates on 24V power. Supplied with the LA keyway keyed random and two keys, it delivers dependable security along with the ANSI durability standards Sargent is known for. A 2-3/4" backset and 4-7/8" strike round out the specifications.

Features

• Grade 1 cylindrical lock engineered for heavy-duty commercial use.
• Classroom function allows the outside lever to be locked or unlocked by key while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch signals door status to access control systems.
• MD lever with L rose provides a clean, durable design suitable for most institutional settings.
• Operates on 24V for compatibility with electrified access control setups.
• Ships with LA keyway keyed random and two keys included.

Functional Details

The classroom function (37) lets authorized staff control access from the exterior side using a key, while the interior lever always permits free egress. The RX switch monitors lever activation to report exit requests back to the connected system.

• Latchbolt operated by lever from either side except when outside lever is locked by key from outside.
• Key outside locks or unlocks outside lever.
• Inside lever is always free for immediate egress.
