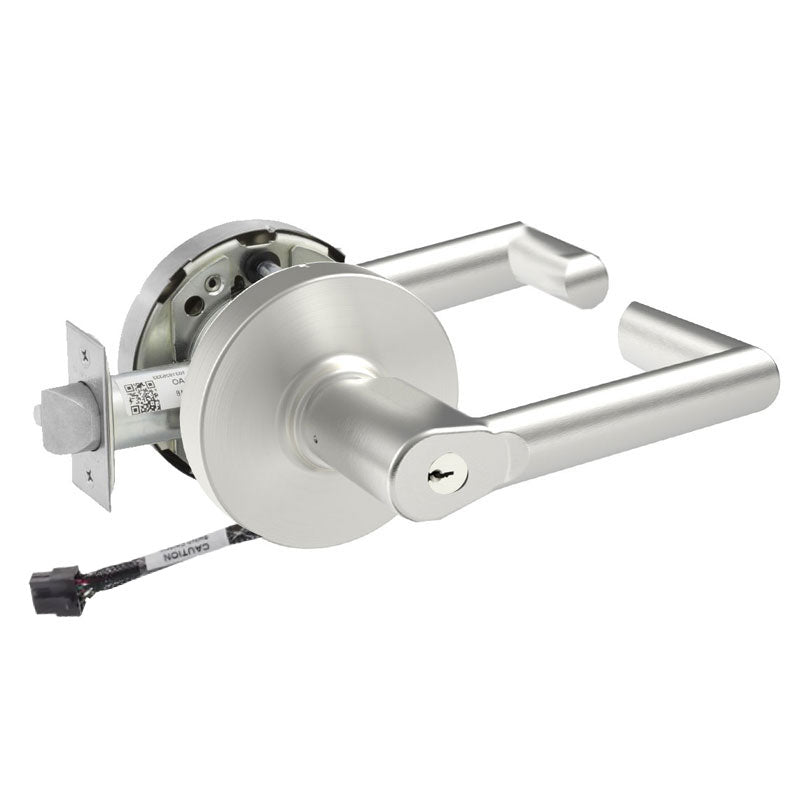

Sargent RX-10XG37-LMW-12V-KD Classroom Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, LA Keyway Keyed Random [2] Keys, Grade 1

The Sargent RX-10XG37-LMW-12V-KD is a Grade 1 classroom function cylindrical lock built for high-traffic commercial and institutional openings. It combines dependable mechanical locking with an integrated Request to Exit (RX) switch, allowing the lock to signal an access control or monitoring system when the interior lever is operated. Featuring the LMW lever with L rose, a 2-3/4" backset, and a 4-7/8" strike, this 12V unit uses the LA keyway and ships keyed random with two keys. Ideal for schools, offices, and healthcare facilities, it delivers reliable security and smooth daily operation where controlled access and status monitoring are essential.

Features

• Classroom function allows the outside lever to be locked or unlocked by key while the inside lever always permits free egress.
• Integrated Request to Exit (RX) switch signals access control systems when the inside lever is turned.
• Grade 1 cylindrical construction rated for heavy-duty commercial use.
• LMW lever paired with the L rose for a clean, durable trim design.
• 2-3/4" backset with a 4-7/8" ANSI strike for standard door prep.
• LA keyway cylinder, keyed random and supplied with two keys.
• 12V operation for compatibility with electrified access control setups.

Functional Details

The classroom function keeps the interior lever always free for immediate egress, while the exterior lever is locked or unlocked using the key. The Request to Exit switch reports lever activation to a connected security system without affecting the mechanical locking behavior.

• Outside lever locked or unlocked by key.
• Inside lever always free for immediate egress.
• Key removable in locked or unlocked position.
