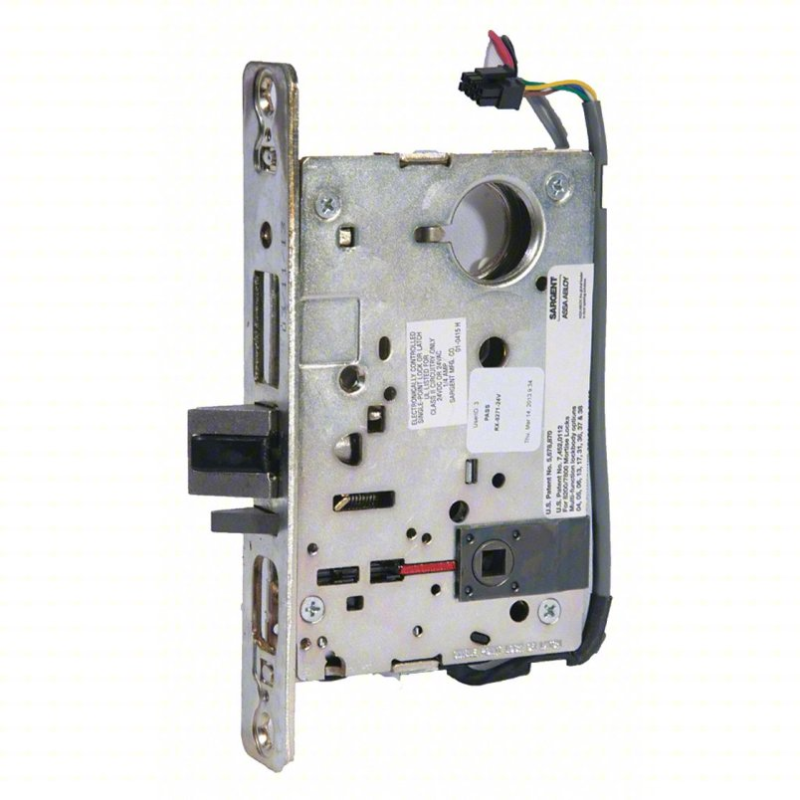

Sargent RX-8271-12V Lock Body Only Electro Mechanical Fail Safe Function, Single Cylinder, Request to Exit, 12VDC, Grade 1, Feild Reversible

The Sargent RX-8271-12V Lock Body Only Electro Mechanical Fail Safe Function, Single Cylinder, Request to Exit, 12VDC, Grade 1, Feild Reversible is designed for commercial openings that need dependable electrified access control with life-safety performance. This lock body only configuration provides the RX-8271 function with request to exit capability, a fail safe electro mechanical design, and 12VDC operation. Built as a Grade 1 mortise lock, it is suited for demanding institutional, commercial, and public building applications. The single cylinder setup supports keyed control, while the field reversible handing helps simplify installation and inventory management.

Features

• Sargent RX-8271-12V lock body only configuration is intended for use where the existing trim or related components are supplied separately.

• Electro mechanical fail safe function unlocks upon loss of power for applications requiring safe egress.

• Single cylinder function provides keyed access control from one side of the opening.

• Request to exit capability supports monitoring or signaling when the inside lever is operated.

• 12VDC operation matches low-voltage access control system requirements.

• Grade 1 construction is built for heavy-duty commercial use.

• Field reversible handing allows the lock body to be adapted for either door hand during installation.

Functional Details

The RX-8271 electro mechanical fail safe function is intended for controlled openings where the lock must release when power is interrupted. In this single cylinder configuration, the lock body works with access control systems while also providing request to exit signaling from the inside lever. The field reversible design helps installers change handing without ordering a separate lock body.

• 71 function — Power ON, unlocks outside lever

• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)

• Key outside retracts latchbolt

• Lever outside retracts latchbolt, except when locked

• Lever outside can only be locked electronically

• Lever inside always retracts latchbolt

• Auxiliary deadlatch

Included Components

This product is a lock body only package. Trim, cylinder, strikes, and other door hardware components are supplied separately unless otherwise specified for the complete opening.
