Technical Specs
| Function | 71-Electrical Fail Secure |
| Side Locked | Outside |
| Door Thickness | 1 3/4" |
| Latch Type | Dead Latch (Guarded) |
| Request to exit | Yes |
| Latch Backset Dim | 2 3/4 In. |
| Lock Face Size | 8" X 1 1/4" |
| Bolt Projection | 3/4" |
| Strike Number | 82-0110 |
| Strike Type | ASA |
| Strike Height | 4 7/8" |
| Strike Width | 1 1/4" |
| Screws | Combination |
| Power | Hard Wired |
| Operating Voltage | 12VDC |
| Amp Draw | 500mA Peak, 15mA Holding |
| Product Type | Electric Mortise Lock |
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| Application | Complete Lock |
| BAA Qualified | Yes |
| Limited Warranty | 2 Years |
| Fire Rated | 2 Hours {B} |

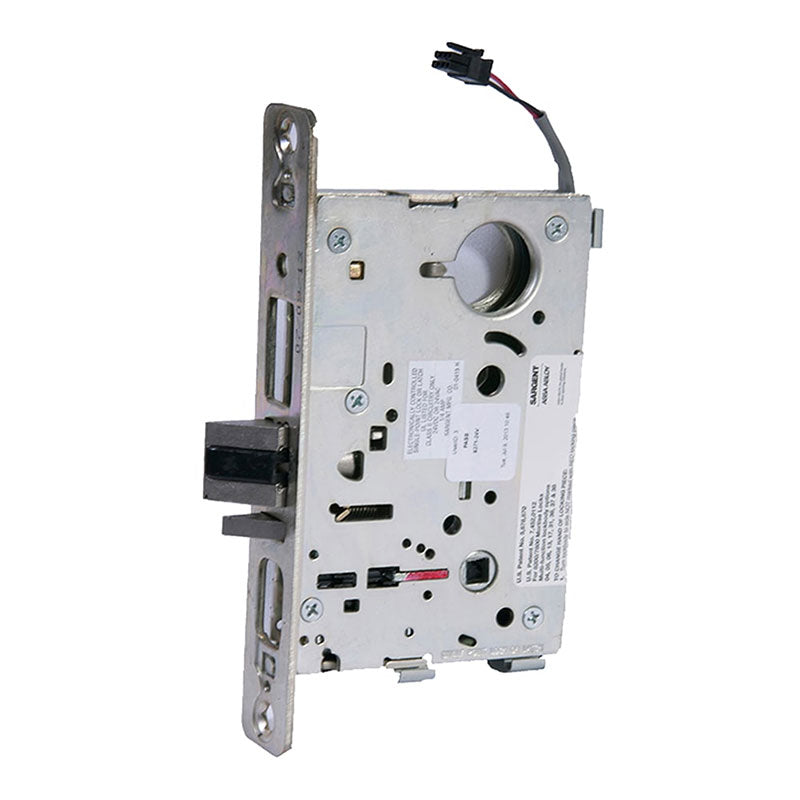

Sargent RX-8271-12V US26D Lock Body Only Electro Mechanical Fail Secure Function, Single Cylinder, Request to Exit, 12VDC, Satin Chrome Finish
The Sargent RX-8271-12V-US26D Lock Body Only offers an electro-mechanical fail secure function, along with single cylinder and a request to exit feature. This 12VDC lock body comes in a sleek satin chrome finish.
71 Electric (Fail Secure)
- 71 function — Power ON, unlocks outside lever
- Specify voltage: 12VDC
- Key outside retracts latch bolt
- The lever outside retracts latchbolt, except when locked
- Lever outside can only be locked electronically
- Lever inside always retracts latchbolt
- Auxiliary deadlatch
RX- option: Request-to-Exit or Enter Signaling Switch
- Two switches mounted internally in lockbody that provide independent monitoring of inside and outside lever rotation
- Available in all functions with non rigid levers
- Not available for the following options: 1-, 3-, 74-
- Not available for the following trims: LS or FE
