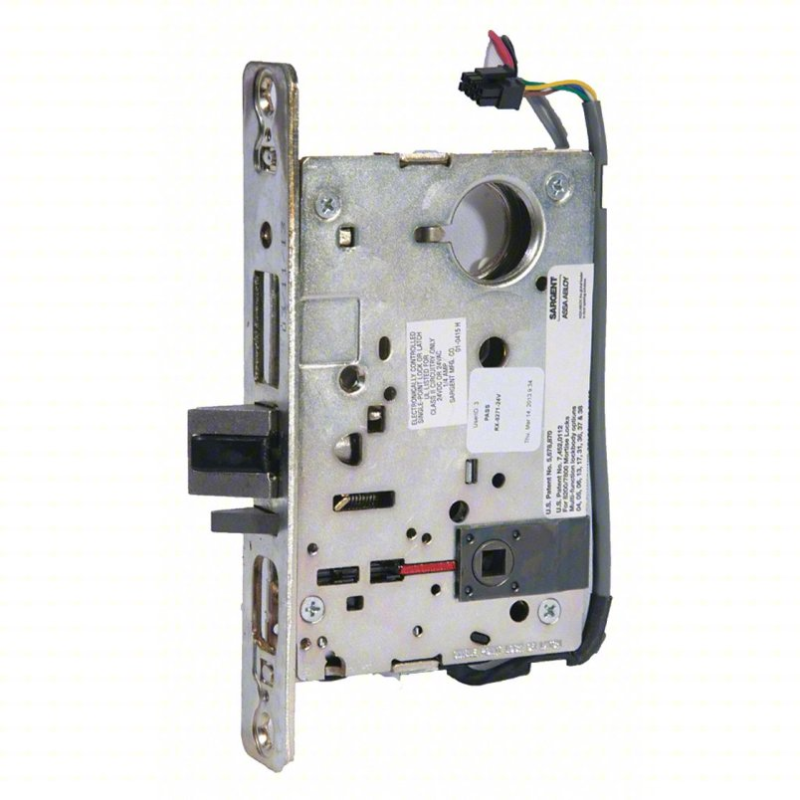

Sargent RX-8271-24V Lock Body Only Electro Mechanical Fail Safe Function, Single Cylinder, Request to Exit, 24VDC, Grade 1, Feild Reversible

The Sargent RX-8271-24V Lock Body Only Electro Mechanical Fail Safe Function, Single Cylinder, Request to Exit, 24VDC, Grade 1, Feild Reversible is a heavy-duty mortise lockbody designed for commercial openings that require controlled access and dependable life safety performance. Built within Sargent’s 8200 Series platform, this electro mechanical fail safe lock body combines single cylinder operation with request to exit capability and 24VDC power requirements for integration with access control systems. Its Grade 1 construction supports demanding institutional, commercial, and public building applications, while the field reversible design helps simplify installation and handing changes in the field.

Features

• Sargent RX-8271-24V lock body only configuration is designed for 8200 Series mortise lock applications.

• Electro mechanical fail safe function unlocks upon loss of power for life safety and controlled egress applications.

• Single cylinder operation provides keyed control from one side of the door.

• Request to exit capability supports monitoring and signaling when egress is initiated.

• 24VDC operation is designed for access control and electrified hardware systems.

• Grade 1 construction meets heavy-duty commercial performance requirements.

• Feild reversible handing allows the lock body to be adjusted for door swing in the field.

Functional Details

The RX-8271-24V is an electro mechanical fail safe mortise lock body intended for doors that need secure access control with free egress during power loss. In a fail safe configuration, the locked side releases when power is interrupted, making it suitable for openings where safety and code compliance are critical. The request to exit feature supports system coordination by signaling when the inside lever is used for egress.

• 71 function — Power ON, unlocks outside lever

• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)

• Key outside retracts latchbolt

• Lever outside retracts latchbolt, except when locked

• Lever outside can only be locked electronically

• Lever inside always retracts latchbolt

• Auxiliary deadlatch

Included Components

This product is supplied as a lock body only. Trim, cylinder, strike, and other mortise lock components are ordered separately as required for the opening.
