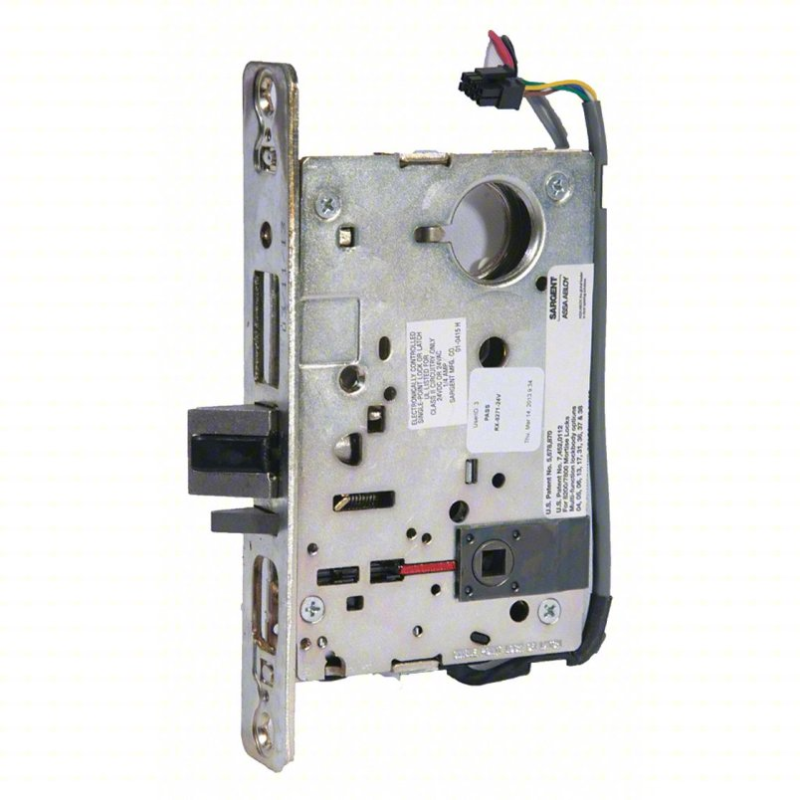

Sargent RX-8272-24V Lock Body Only Electro Mechanical Fail Safe Function, Double Cylinder, Request to Exit, 24VDC, Grade 1, Feild Reversible

The Sargent RX-8272-24V Lock Body Only Electro Mechanical Fail Safe Function, Double Cylinder, Request to Exit, 24VDC, Grade 1, Feild Reversible is designed for commercial openings that require dependable electrified mortise lock performance with request-to-exit capability. This lock body only configuration uses an electro mechanical fail safe function and a double cylinder setup, making it suitable for controlled egress applications where power status affects security. Built on Sargent’s Grade 1 mortise lock platform, the RX-8272-24V is field reversible for added flexibility during installation and is engineered for 24VDC operation in demanding institutional, commercial, and high-traffic environments.

Features

• Lock body only configuration allows use with compatible trim and cylinders already specified for the opening.

• Electro mechanical fail safe function unlocks when power is interrupted.

• Double cylinder function provides keyed operation from both sides.

• Request to Exit feature supports monitoring and access control integration.

• 24VDC operation is specified for low-voltage electrified hardware systems.

• Grade 1 construction is built for heavy-duty commercial use.

• Feild reversible handing allows the lock body to be adjusted for door handing in the field.

Functional Details

This electro mechanical fail safe mortise lock is designed so the locked condition depends on power being applied. In a fail safe setup, loss of power releases the lock, which is commonly used on openings that require unlocked egress during a power interruption. The RX request-to-exit feature adds internal switch monitoring to signal egress activity for access control and security system coordination.

• 72 function — Power ON, locks both levers

• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)

• Key on either side retracts latchbolt

• Lever from either side retracts latchbolt, except when levers are locked

• Both levers can only be locked & unlocked electronically

• Levers can not be locked separately, only together

• Auxiliary deadlatch

Included Components

This product is supplied as the lock body only. Trim, cylinders, strikes, and other door hardware components are specified separately based on the opening requirements and compatible 8200 Series mortise lock configurations.
