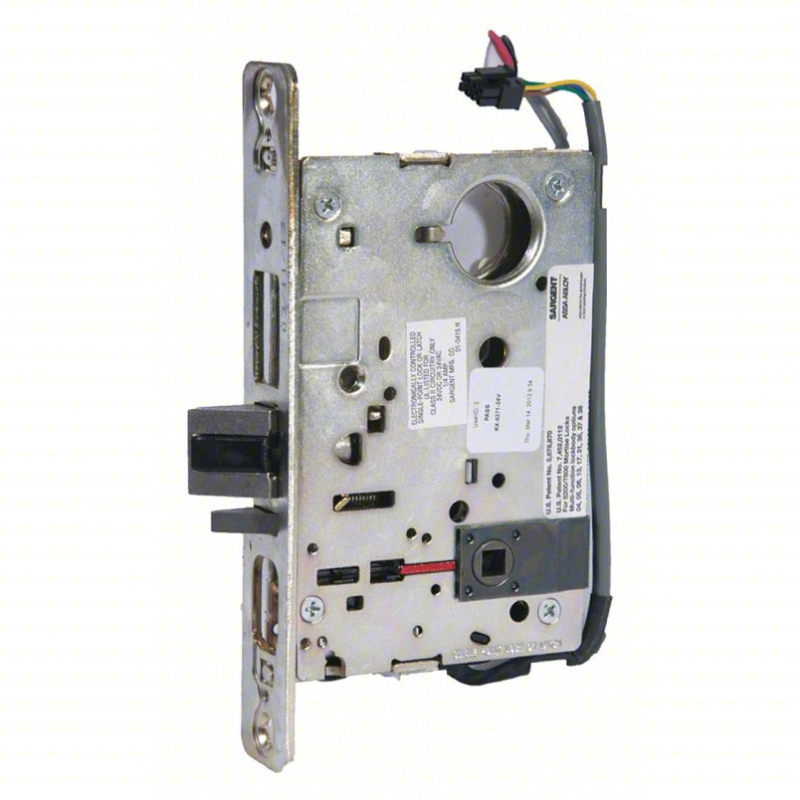

Sargent RX-8273-12V Lock Body Only Electro Mechanical Fail Safe Function, Double Cylinder, Request to Exit, 12VDC, Grade 1, Feild Reversible

The Sargent RX-8273-12V Lock Body Only is an electro mechanical mortise lock solution built for applications that need fail safe function, double cylinder security, and request to exit capability in a 12VDC configuration. As part of Sargent’s Grade 1 mortise lock offering, this lock body is designed for demanding commercial openings where durability and controlled egress are important. The RX-8273-12V configuration combines electrified operation with field reversible handing, making it easier to adapt the lock body to door requirements while maintaining the performance standards expected from a heavy-duty Sargent mortise lock.

Features

• Sargent RX-8273-12V lock body only configuration is designed for use where existing trim or additional components are supplied separately.

• Electro mechanical operation provides remote locking control for commercial mortise lock applications.

• Fail safe function unlocks upon loss of power for openings requiring safe egress.

• Double cylinder function provides key operation from both sides for controlled access.

• Request to exit capability supports monitoring or signaling during egress.

• 12VDC electrical specification matches low-voltage access control system requirements.

• Grade 1 construction is built for heavy-duty commercial use.

• Field reversible design allows the lock body handing to be changed to suit door swing requirements.

Functional Details

This RX electro mechanical fail safe lock body is intended for access control openings where the lock must release when power is interrupted. The request to exit feature supports systems that monitor or coordinate egress activity, while the double cylinder function maintains keyed control from both sides of the door.

• 73 function — Power ON, unlocks both levers

• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)

• Key on either side retracts latchbolt

• Lever from either side retracts latchbolt, except when levers are locked

• Both levers can only be locked & unlocked electronically

• Levers can not be locked separately, only together

• Auxiliary deadlatch

Included Components

This listing is for the lock body only. Trim, cylinders, strikes, and other door hardware components are supplied separately unless otherwise specified.
