| Function | 73-Electrical Fail Secure |
| Side Locked | Both side |
| Door Thickness | 1 3/4" |
| Latch Type | Dead Latch (Guarded) |
| Request to exit | Yes |
| Latch Backset Dim | 2 3/4 In. |
| Lock Face Size | 8" X 1 1/4" |
| Bolt Projection | 3/4" |
| Strike Number | 82-0110 |
| Strike Type | ASA |
| Strike Height | 4 7/8" |
| Strike Width | 1 1/4" |
| Screws | Combination |
| Power | Hard Wired |
| Operating Voltage | 12VDC |
| Amp Draw | 500mA Peak, 15mA Holding |
| Product Type | Electric Mortise Lock |
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| Application | Complete Lock |
| BAA Qualified | Yes |
| Limited Warranty | 2 Years |
| Fire Rated | 2 Hours {B} |

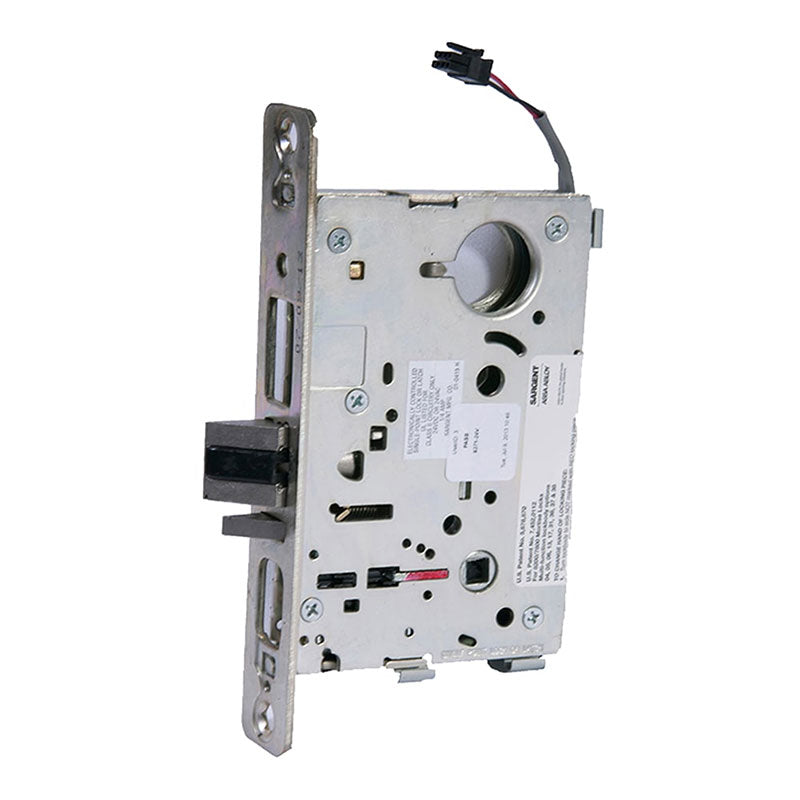

The Sargent RX-8273-12V-US26D Lock Body is designed for use with the fail secure function and is equipped with a double cylinder. This lock body also includes a request to exit feature and has a satin chrome finish. It operates on 12VDC power.
73 Electric (Fail Safe)
RX- option: Request-to-Exit or Enter Signaling Switch
