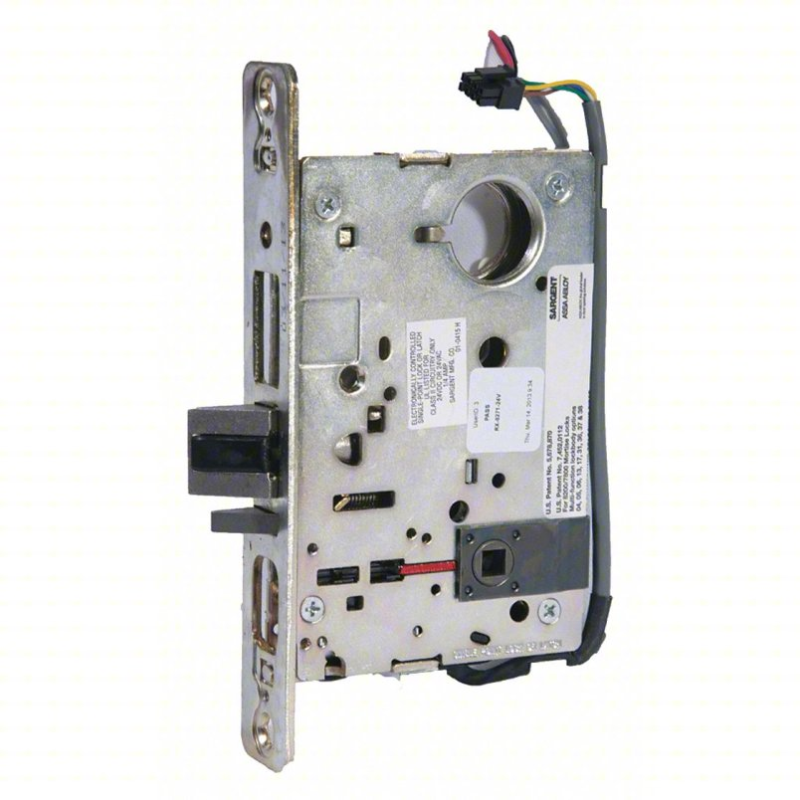

Sargent RX-8273-24V Lock Body Only Electro Mechanical Fail Safe Function, Double Cylinder, Request to Exit, 24VDC, Grade 1, Feild Reversible

The Sargent RX-8273-24V Lock Body Only is an electro mechanical mortise lock body built for applications that require fail safe function, double cylinder security, and request to exit capability in a 24VDC configuration. As part of Sargent’s Grade 1 mortise lock offering, this lock body is designed for demanding commercial openings where dependable electrical control and code-related egress support are important. The field reversible design helps simplify installation and handing changes in the field, while the lock body only format allows use in compatible trim and mortise lock preparations covered in the Sargent 8200/7800 Series cut sheet.

Features

• Sargent RX-8273-24V lock body only configuration supports replacement, maintenance, or system-specific trim applications.

• Electro mechanical operation provides electrified locking control for commercial door openings.

• Fail safe function unlocks upon loss of power for applications requiring safe egress behavior.

• Double cylinder function provides keyed operation from both sides of the door.

• Request to Exit monitoring supports egress-related signaling and access control integration.

• 24VDC operation matches low-voltage access control system requirements.

• Grade 1 construction is built for heavy-duty commercial performance.

• Field reversible handing allows the lock body to be changed on site as needed.

Functional Details

The RX-8273-24V uses an electro mechanical fail safe function, meaning the lock is maintained secure when powered and releases when power is interrupted. The Request to Exit feature adds monitoring capability for access control and egress applications, while the double cylinder function requires a key for operation from either side.

• 73 function — Power ON, unlocks both levers

• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)

• Key on either side retracts latchbolt

• Lever from either side retracts latchbolt, except when levers are locked

• Both levers can only be locked & unlocked electronically

• Levers can not be locked separately, only together

• Auxiliary deadlatch

Included Components

This product is a lock body only. Trim, cylinders, strikes, and other door hardware components are supplied separately unless specified otherwise in the complete opening configuration.
