Technical Specs
| Function | Indicator with Cylinder Prep |
| Cylinder Type |
Less Cylinder |
| For Use With | Interior Sectional Mortise Trim |
| Product Type | Indicator Kits |
Product Specs
| Manufacturer | Sargent |
| SKU | SA191 26D |
| Installation | Commercial |
| Unit of Measure | Each |
| Application | Indicator Kit Only |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |

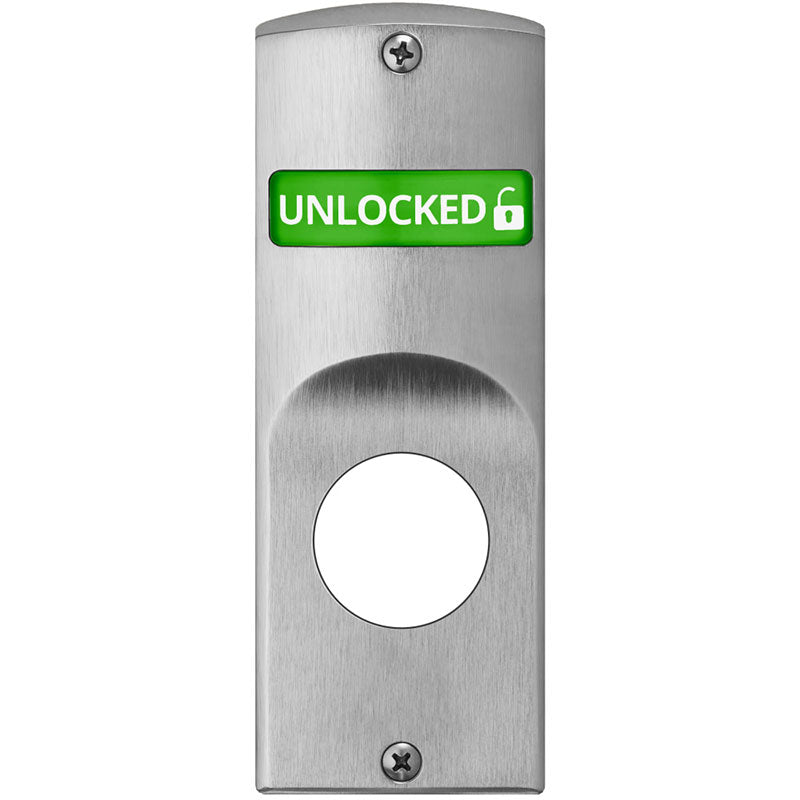

The Sargent SA191-US26D Mortise Lock Retrofit Status indicators are for Sargent 7800 and 8200 Series Mortise Locks with Sectional Trim, is Mounted Inside Of the Door, in a variety of Indicator Options, for use with 1 3/4" Thick Doors, they are Field Reversible, and come in US26D Satin Chrome finish.
- Surface mounted
- Torx security screws provided
- Compatible with select sectional trim rose designs: O, LN, E, TR, CR, CO, TO, E2, E3
- Compatible with all thumb turn designs
- Available with optional directional arrow engraving
- Not compatible with BHW, BHL, or BHD trims
SA191 is Used with Sargent Mortise Lock Functions:
36, 56, 57, 58, 67
Retrofit/Upgrade Kits
Retrofit/upgrade kits are available for existing applications only. Each kit includes a single side indicator plate with mechanism, screw pack, plastic template, and instructions.
Kits are handed and easily field reversible. All units are shipped from the factory with a default handing. Handing must be field verified and adjusted as needed per product installation instructions.
Retrofit/upgrade kits with directional engraving must include lock handing and lock function details. Note: Indicators for both sides of the door require two kits
