Technical Specs
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | 3-3/4 In. |
| Lock Face Size | 2-1/4 In. x 1-1/8 In. |
| Bolt Projection | 1/2 In. |
| Product Type | Spring Latches |
Product Specs
| Manufacturer | Schlage |
| SKU | 14-010 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |

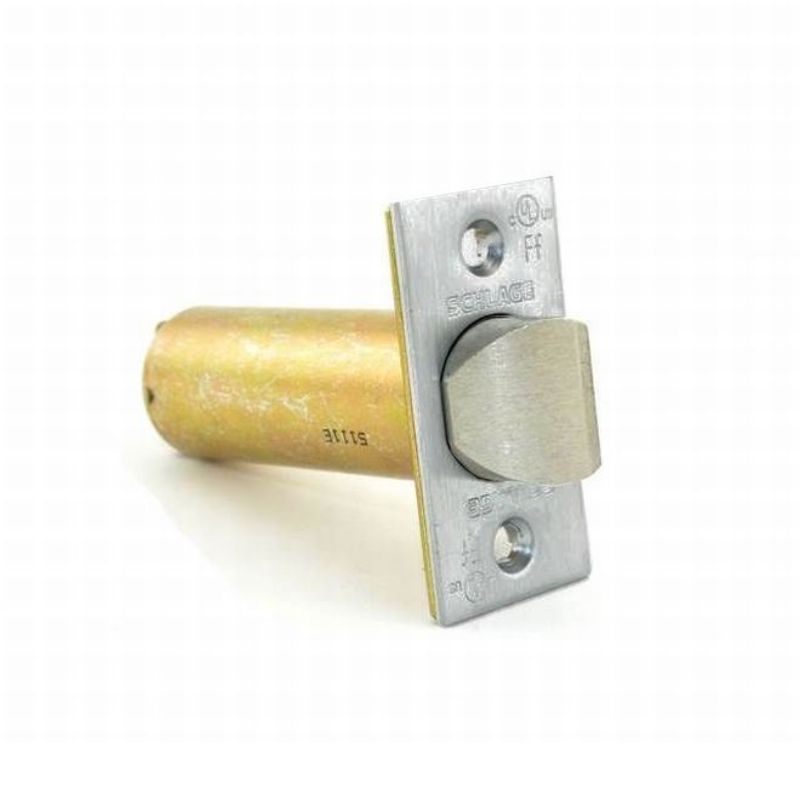

Schlage 14-010 Spring Latch, 3-3/4" Backset, 1-1/8" x 2-1/4" Face, Square Corner, For ND Series Cylindrical Locksets
The Schlage 14-010 Spring Latch is designed for use with ND Series Cylindrical Locksets, and features a 3-3/4" backset and a 1-1/8" x 2-1/4" square corner face.
DeadLatch: For Non-Keyed Functions.
Schlage ND Serires Latches
ND latches are adjustable for flat or bevel edged doors, and are finished to match
the lock trim. All ND Series latches have 1⁄2" throw and 1" housings except the anti-friction fire door latch, which has a 3⁄4" throw. Please see the cut sheet for more options including extended backset strikes (up to 5") and rabbited latch and strike kits.
