Technical Specs
| Cylinder Type | Mortise Cylinder |
| Num Pins | 6 |
| Std. Keyway | C |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Cylinder Length | 1-1/8 In. |
| Cam Type | Straight |
| Cam Number | L583-476 |
| For Use With | Schlage L Mortise Locks L9060 Exterior |
| Handing | Non-handed |
| Product Type | Mortise Cylinder |
Product Specs
| Manufacturer | Schlage |
| SKU | 20-001 C 118 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| Application | Compression Ring & Spring |
| Limited Warranty | 3 Years |

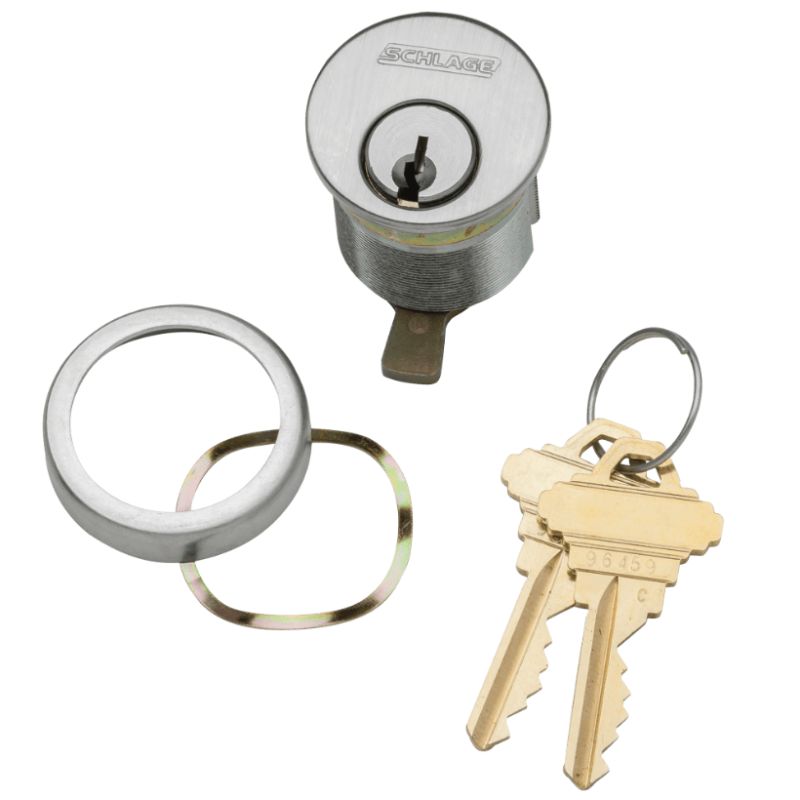

Schlage 20-001-C-118 Mortise Cylinder 1 1/8 Inch, 6-pin, C Keyway, Keyed Different, Straight Cam, Compression Ring & Spring, 2 Keys
Schlage 20-001-C-118 Mortise Cylinder is designed with a 1 1/8 inch measurement, 6-pin construction, and C keyway. It features a keyed different mechanism and comes with a straight cam, compression ring and spring, and 2 keys.
