All SCHLAGE Products
Technical Specs
| Cylinder Type | FSIC Prep with Core |
| Num Pins | 6 |
| Keying | Construction |
| Num of Keys | 0 |
| Cylinder Length | 1-1/2 In. |
| Cam Type | Straight |
| Cam Number | K510-730 |
| For Use With | Schlage L Mortise Locks L9060 Exterior |
| Handing | Non-handed |
| Product Type | FSIC Mortise Cylinder |
Product Specs
| Manufacturer | Schlage |
| SKU | 20-061 ICX XQ11-948 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| Application | Compression Ring, Spring, 3/8 In. Blocking Ring |
| Limited Warranty | 3 Years |

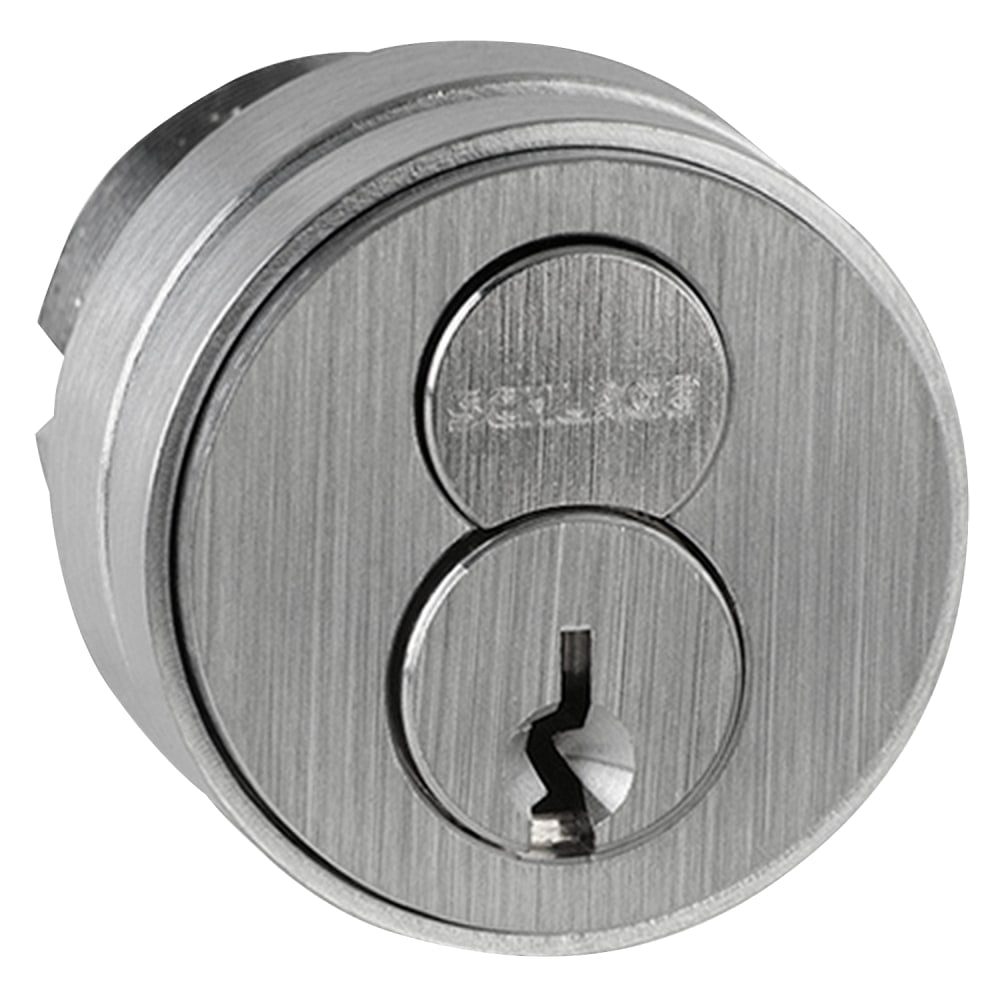

Schlage 20-061 ICX XQ11-948 FSIC Mortise Cylinder, 1 1/2 Inch, 6-pin, ICX Construction Keyway, Straight Cam, Compression Ring, Spring, 3/8 In. Blocking Ring, No Keys
Schlage 20-061 ICX XQ11-948 FSIC Mortise Cylinder features a durable construction with a 6-pin design and straight cam for added security. It also includes a compression ring, spring, and 3/8 inch blocking ring, and comes with 0 keys.
- For Use With Schlage L Mortise Locks L9060 Exterior
- The XQ11-948 is for dogging applications that require an inverted CAM
