Description

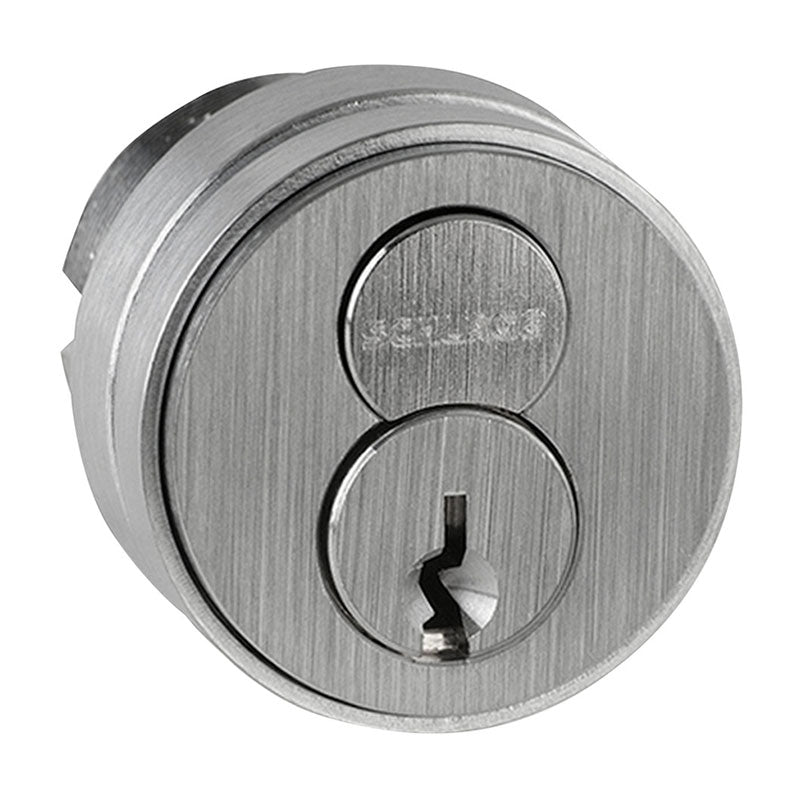

The Schlage 20-062-E-626 is a 1 1/2" FSIC Mortise Cylinder that comes with Compression Ring, Spring, and 3/16" & 3/8" Blocking Rings. The Schlage 20-062-E-626 comes with a FSIC core that is 6 Pin, has an E Keyway that is 1 bitted, with 2 keys and comes in Satin Chrome Finish.
| Cylinder Type: | FSIC Mortise Cylinder |
| Cylinder Length: | 1 1/2" |
| Cam Type: | Adams Rite Cam |
| Cam Number: | K510-711 |
| Handing: | Non-Handed |
| Finish: | 626/US26D Satin Chrome |
Product Specs
| Manufacturer | Schlage |
| SKU | 20-062 E 626 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| Application | Compression Ring, Spring, 3/16 In. & 3/8 In. Blocking Rings |
| Limited Warranty | 3 Years |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specs
| Cylinder Type |
FSIC Prep with Core |
| Num Pins | 6 |
| Std. Keyway | E |
| Keying | 1 Bitted |
| Key(s) | Cut |
| Num of Keys | 2 |
| Cylinder Length | 1 1/2" |
| Cam Type | Adams Rite |
| Cam Number | K510-711 |
| For Use With | Adams Rite 4500, 4700 Deadlatches |
| Handing | Non-handed |
| Product Type | FSIC Mortise Cylinder |
