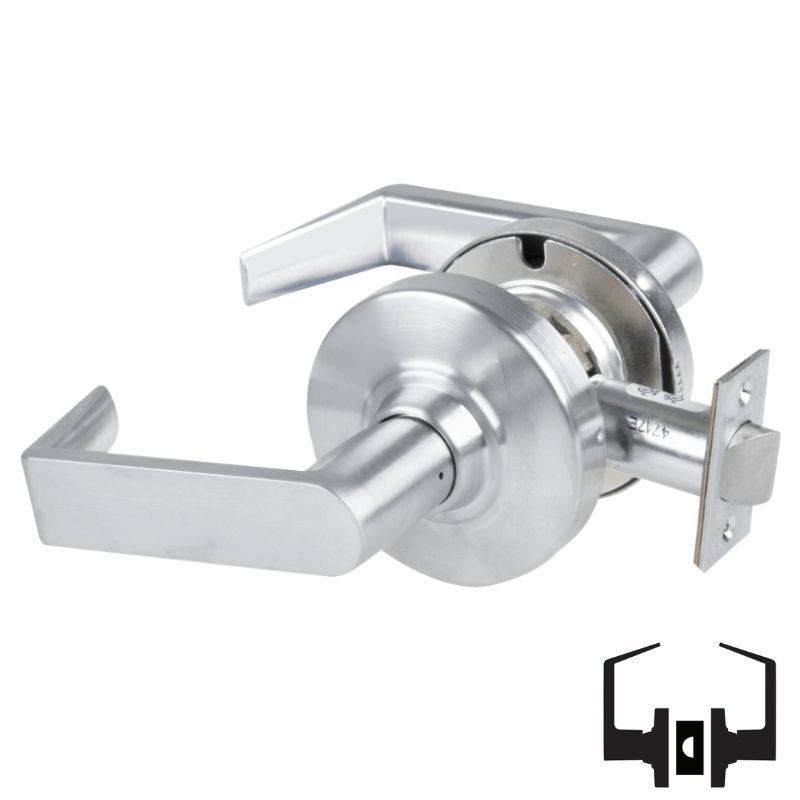

Schlage ALX10-RHO Passage Cylindrical Lock, Rhodes Lever, Non-Keyed

  • SKU: ALX10RHO626

Schlage ALX10-RHO Passage Cylindrical Lock, Rhodes Lever, Non-Keyed

  • SKU: ALX10RHO626
  • ✓
    In Stock
    In Stock
Your Price
$322.00 /ea
Finish: US26D-626 Satin Chrome

Schlage ALX10-RHO Passage Cylindrical Lock, Field Selectable Vandlgard, Rhodes Lever, Non-Keyed, 2-3/4 Inch Backset, 4-7/8 Inch ASA Strike, Grade 2, Non-handed

The Schlage ALX10-RHO delivers professional-grade passage control with its robust cylindrical design and Rhodes lever styling. This Grade 2 lock features field-selectable Vandlgard protection, accommodating standard 2-3/4 inch backsets and 4-7/8 inch ASA strikes. Non-keyed operation makes it ideal for interior applications where access control isn't required, while its non-handed configuration simplifies installation across various door orientations. Built for commercial durability and reliability.

  • ALX10 Non-Keyed Function, Passage Latch

    • No Key, Plain lever on both sides, spring latch.
    • Both levers are always unlocked.
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 10 Passage Latch
Function Family Passage
ANSI Function F75 - Passage
Lever/Knob Design RHO - Rhodes Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Dimensions 3-7/16" Rose Diameter
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/8 In. - 1-3/4 In.
Std. Latch Number 47267038
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4 In.
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Cylindrical Lock
