Schlage ALX40-RHO Privacy Cylindrical Lock, Rhodes Lever, Non-Keyed

  • SKU: ALX40RHO626
  • ✓
    In Stock
    In Stock
Your Price
$362.00 /ea
Finish: US26D-626 Satin Chrome

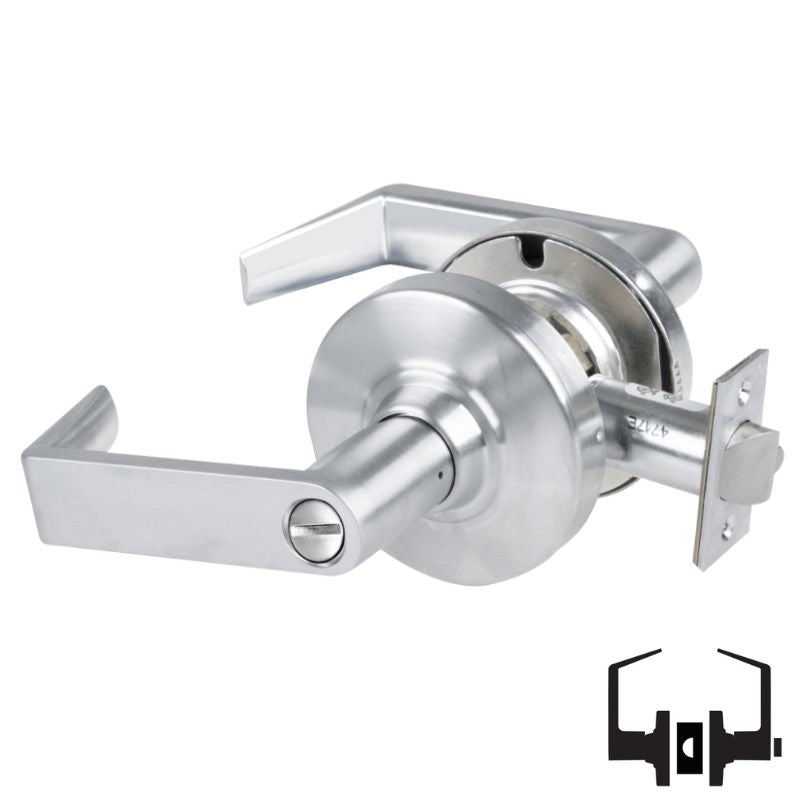

Schlage ALX40-RHO, Privacy Cylindrical Lock with Field Selectable Vandlgard, Rhodes Lever, Non-Keyed, 2 3/4 Backset, 4 7/8" Strike, Grade 2, Non-handed

The Schlage ALX40-RHO Privacy Cylindrical Lock features a Field Selectable Vandlgard for added security. Equipped with a Rhodes Lever and Non-Keyed design, this Grade 2 lock has a 2 3/4 inch backset and a 4 7/8 inch strike. It is also non-handed for easy installation on any type of door.

ALX40 Non-Keyed Function, Bath/bedroom privacy lock

  • No key; emergency access coin turn outside; push button inside; spring latch
  • Inside push button locks outside lever
  • Turn inside lever or close the door to release the button and prevent lock-out; outside coin
    turn provides emergency access
  • Field selectable Vandlgard® feature
  • Inside lever is always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 40 Bed Bathroom Privacy Lock
Function Family Privacy
ANSI Function F76 - Privacy
Lever/Knob Design RHO Rhodes Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267038
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock




Product Cut Sheet
