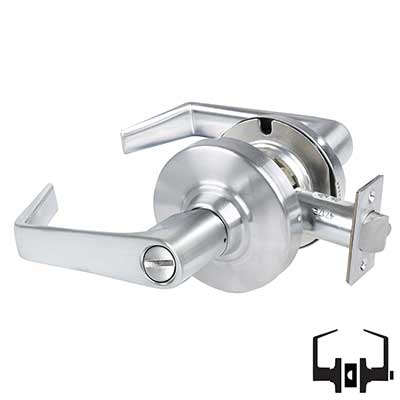

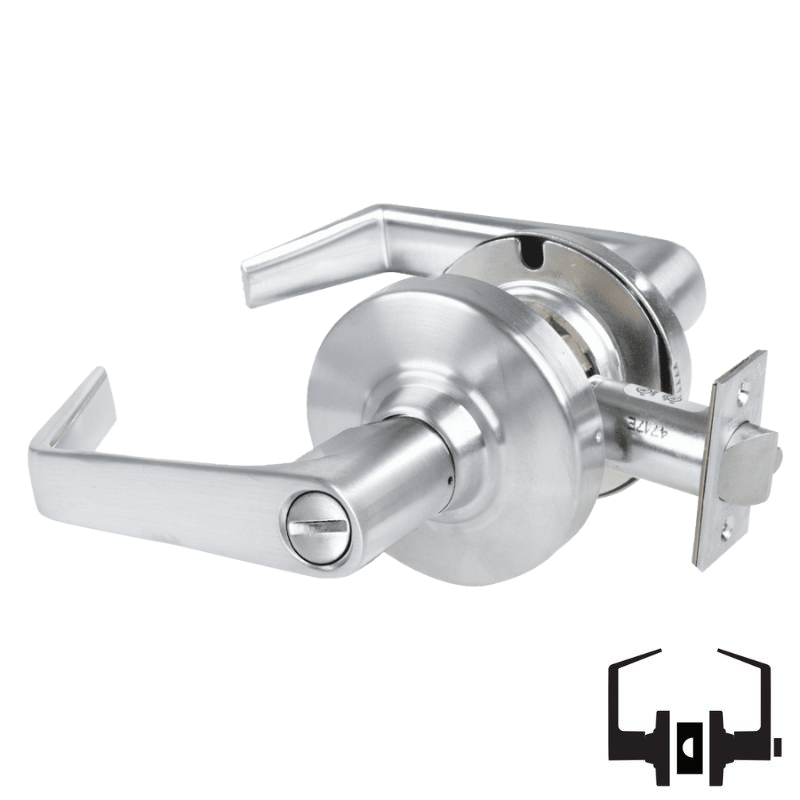

Schlage ALX40-SAT Privacy Cylindrical Lock, Saturn Lever, Non-Keyed

  • SKU: ALX40SAT626

Schlage ALX40-SAT Privacy Cylindrical Lock, Saturn Lever, Non-Keyed

  • SKU: ALX40SAT626
Sale price$335.00/ea
In Stock
In Stock
Schlage Finish: 626 - Satin Chromium Plated

The Schlage ALX40-SAT is a Cylindrical Privacy function lock, with a Saturn Lever, with Field Selectable Vandlgard feature, is Non-Keyed, has a 2 3/4" backset, 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome or 622 Matte Black finish.

Schlage ALX40 Bath/Bedroom Privacy Lock - Outside lever fixed. Entrance by key only. The inside lever is always unlocked.

ALX Series Grade 2 Cylindrical Lock

A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.

Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 40 Bed Bathroom Privacy Lock
Function Family Privacy
ANSI Function F76 - Privacy
Lever/Knob Design SAT Saturn Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267038
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
