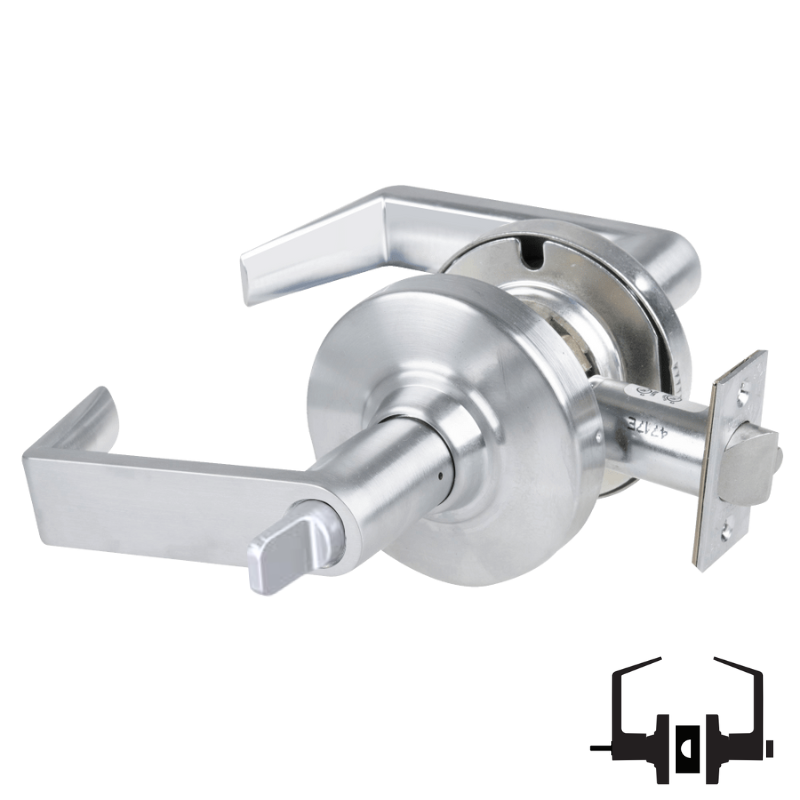

Schlage ALX44-RHO Hospital Privacy Cylindrical Lock, Rhodes Lever, Non-Keyed

  • SKU: ALX44RHO626
  • ✓
    In Stock
    In Stock
Your Price
$361.00 /ea
Finish: US26D-626 Satin Chrome

Schlage ALX44-RHO Hospital Privacy Cylindrical Lock, Field Selectable Vandlgard, Rhodes Lever, Non-Keyed, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non Handed

The Schlage ALX44-RHO delivers institutional-grade security with a non-keyed privacy function ideal for healthcare environments. Featuring a Rhodes lever design and Grade 2 construction, this cylindrical lock accommodates a 2-3/4 inch backset with a 4-7/8 inch strike plate. Field-selectable Vandlgard protection enhances durability against tampering, while the non-handed configuration ensures flexible installation across various door orientations.

ALX44 Non-Keyed Function, Hospital privacy lock

  • No key; emergency turn-button outside; push button inside; spring latch
  • Inside push button locks outside lever
  • Turn inside lever or close door to release button and prevent lock-out; outside turnbutton provides emergency access
  • Field selectable Vandlgard® feature
  • Inside lever is always free for immediate egress



Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 44 Hospital Privacy Lock
Function Family Privacy
Lever/Knob Design RHO Rhodes Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Non-Keyed
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267038
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
