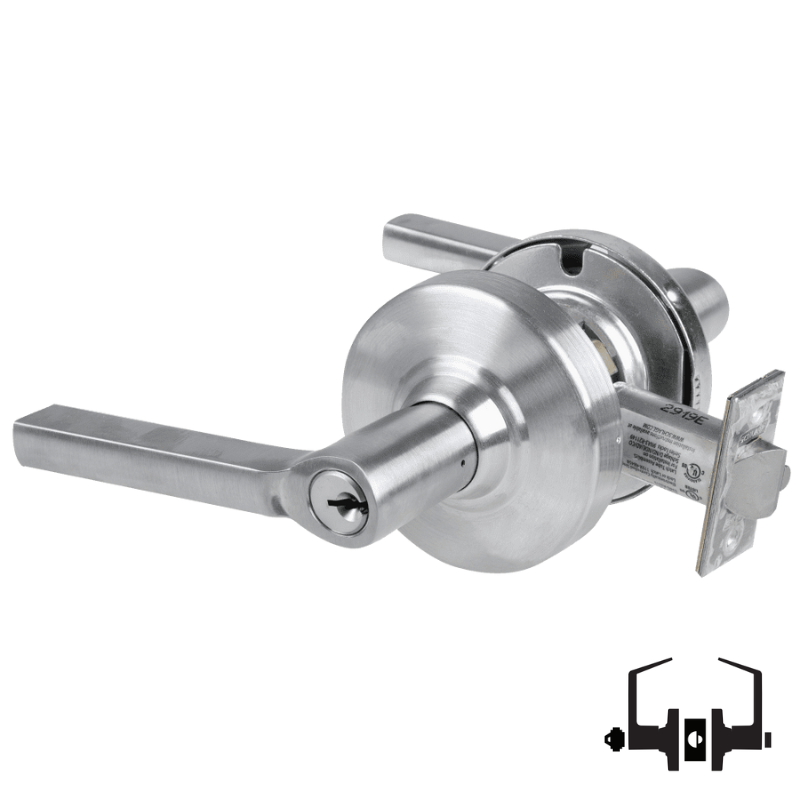

Schlage ALX50P6-LON Office Cylindrical Lock, Longitude Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX50P6LON626
Schlage ALX50-P6-LON-626
Schlage ALX50-P6-LON-626
SchlageALX50
Schlage ALX50P6-LON Office Cylindrical Lock, Longitude Lever, 6 Pin Schlage "C" Keyway, Keyed Different
Schlage ALX50-P6-LON-605
Schlage ALX50-P6-LON-606
Schlage ALX50-P6-LON-612
Schlage ALX50-P6-LON-613
Schlage ALX50-P6-LON-619
Schlage ALX50-P6-LON-622
Schlage ALX50-P6-LON-625
Schlage ALX50-P6-LON-643E
All SCHLAGE Products

Schlage ALX50P6-LON Office Cylindrical Lock, Longitude Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX50P6LON626
  • ✓
    In Stock
    In Stock
Your Price
$443.00 /ea
Finish: US26D-626 Satin Chrome

Schlage ALX50-P6-LON Office Cylindrical Lock, Field Selectable Vandlgard, Longitude Lever, 6 Pin Schlage C Keyway, Keyed Different, [2] Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

Schlage ALX50P6-LON cylindrical lock engineered for commercial office environments. Features the elegant Longitude lever design paired with a 6-pin Schlage "C" keyway for enhanced security. This Grade 2 rated lock delivers reliable performance with field-selectable Vandlgard protection. Includes two uniquely keyed keys, 2-3/4 inch backset, and 4-7/8 inch strike plate. Non-handed design accommodates both left and right-hand door installations, making it a versatile choice for diverse architectural applications.

ALX50 Single Cylinder Deadbolt Function, Entrance/Office Lock

  • Key cylinder outside; push button inside; deadlatch
  • Inside push button locks outside lever
  • Unlock with key outside or by rotating inside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 50 Entrance Office Lock
Function Family Entrance
ANSI Function F82 - Entry
Lever/Knob Design LON Longitude Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
