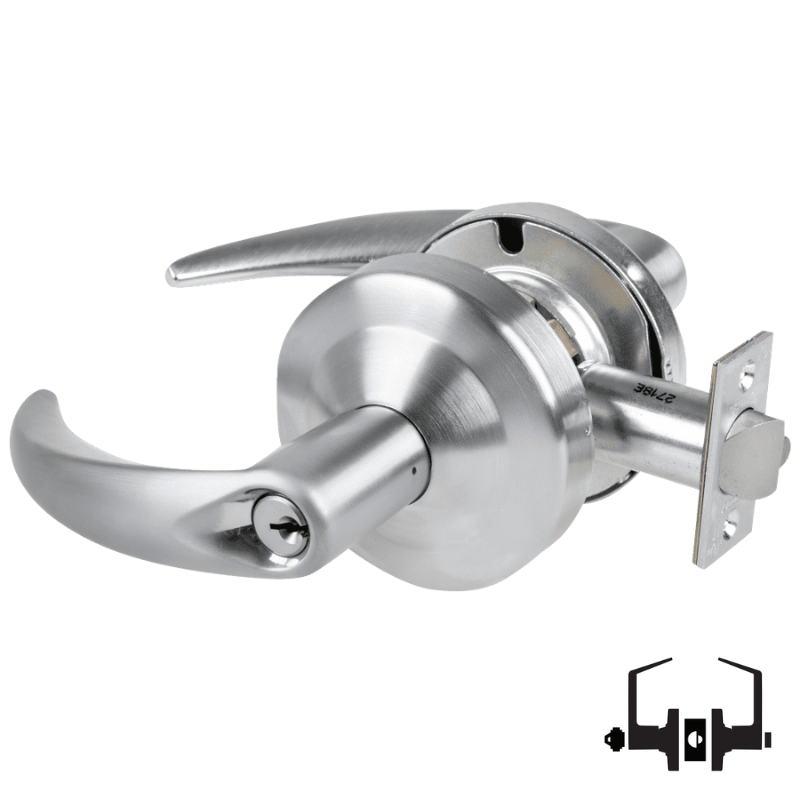

Schlage ALX50P6-OME Office Cylindrical Lock, Omega Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX50P6OME626

Schlage ALX50P6-OME Office Cylindrical Lock, Omega Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX50P6OME626
  • In Stock
    In Stock
Your Price
$442.00 /ea
Finish: US26D-626 Satin Chrome

Schlage ALX50-P6-OME Office Cylindrical Lock, Field Selectable Vandlgard, Omega Lever, 6 Pin Schlage C Keyway, Keyed Different, [2] Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

Schlage's ALX50-P6-OME cylindrical lock delivers commercial-grade security for office environments. This Grade 2 lock features a field-selectable Vandlgard mechanism, allowing you to customize settings on-site without factory returns. The Omega lever design combines ergonomic operation with durability, while the 6-pin Schlage C keyway provides reliable key control. Includes two keys and accommodates standard 2-3/4 inch backsets with a 4-7/8 inch strike plate. Non-handed construction offers flexible installation across left or right-hinged doors, making it an adaptable solution for diverse office layouts and security requirements.

ALX50 Single Cylinder Deadbolt Function, Entrance/Office Lock

  • Key cylinder outside; push button inside; deadlatch
  • Inside push button locks outside lever
  • Unlock with key outside or by rotating inside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 50 Entrance Office Lock
Function Family Entrance
ANSI Function F82 - Entry
Lever/Knob Design OME Omega Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
