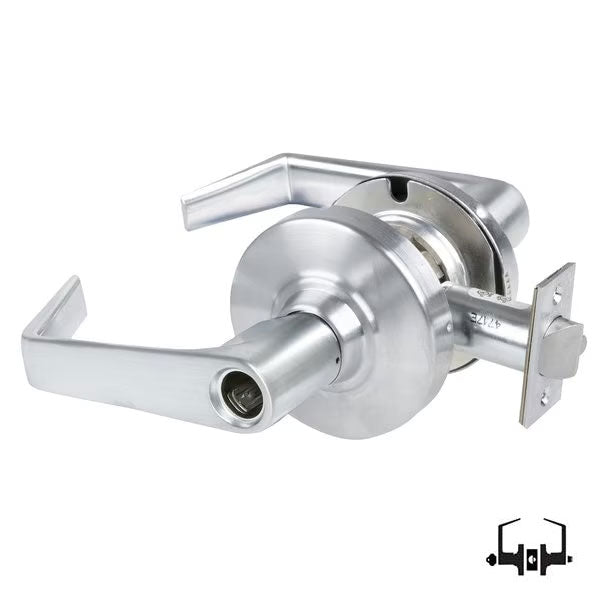

Schlage ALX53L-SAT-626 Entrance Lock, Saturn Lever, Less Cylinder, Satin Chrome

  • SKU: ALX53LSAT626

Schlage ALX53L-SAT-626 Entrance Lock, Saturn Lever, Less Cylinder, Satin Chrome

  • SKU: ALX53LSAT626
Sale price$315.00/ea
In Stock
In Stock

The Schlage ALX53L-SAT-626 is a Cylindrical Entrance function lock, with a Saturn Lever, with Field Selectable Vandlgard feature, comes Less Cylinder, has a 2 3/4" backset, a 4 7/8" ASA Strike, is Non-Handed, is Grade 2, and is available in 626 Satin Chrome finish.

Schlage ALX53 Entrance/Office Lock - Key cylinder outside; push/turn button inside; dead latch. Inside button locks outside lever by pushing button or pushing and turning button. Pushed Button: unlock with key outside or by rotating inside lever. Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then then using key or rotating inside lever. Field Selectable Vandlgard feature. Inside lever always free for immediate egress.

Schlage ALX53 Function

ALX Series Grade 2 Cylindrical Lock

A first of it's kind, Schlage ALX Series is modular in design creating new ways to order, configure and utilize a lock. Whether purchased configured or as chassis, function, and lever kits, you gain extreme installation simplicity, exceptional durability, expanded cylinder support, and maximum flexibility.

Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 53-Entrance Lock
Function Family Entrance
ANSI Function F109 - Entry/Office
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Less Cylinder
Handing Non-handed
Door Thickness 1-3/8 In. - 1-3/4 In.
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4 In.
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Cylindrical Lock
