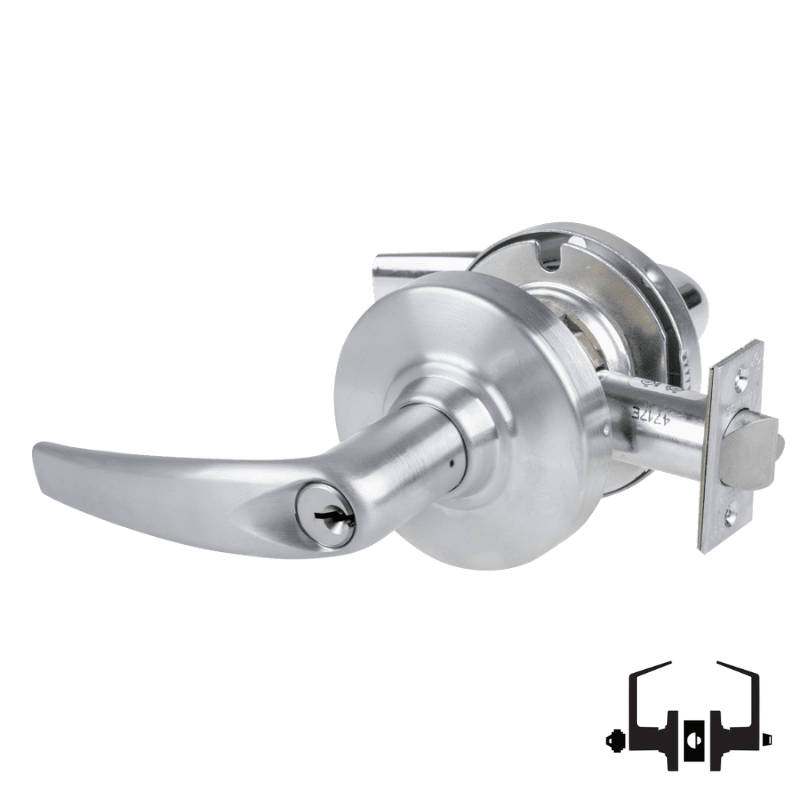

Schlage ALX53P6-ATH Entrance Cylindrical Lock, Athens Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX53P6ATH626
Schlage ALX53P6-ATH-626
Schlage ALX53P6-ATH-626
SchlageALX53
Schlage ALX53P6-ATH Entrance Cylindrical Lock, Athens Lever, 6 Pin Schlage "C" Keyway, Keyed Different
Schlage ALX53P6-ATH-605
Schlage ALX53P6-ATH-606
Schlage ALX53P6-ATH-612
Schlage ALX53P6-ATH-613
Schlage ALX53P6-ATH-619
Schlage ALX53P6-ATH-622
Schlage ALX53P6-ATH-625
Schlage ALX53P6-ATH-643E
All SCHLAGE Products

Schlage ALX53P6-ATH Entrance Cylindrical Lock, Athens Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX53P6ATH626
  • ✓
    In Stock
    In Stock
Your Price
$443.00 /ea
Finish: US26D-626 Satin Chrome

Schlage ALX53-P6-ATH Entrance Cylindrical Lock, Field Selectable Vandlgard, Athens Lever, 6 Pin Schlage C Keyway, Keyed Different, [2] Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

Schlage ALX53P6-ATH entrance cylindrical lock delivers Grade 2 security with a sophisticated Athens lever design. Features a 6-pin Schlage "C" keyway with keyed different operation and includes two keys for immediate use. The field-selectable Vandlgard mechanism provides flexible installation options. Engineered with a 2-3/4 inch backset and 4-7/8 inch strike, this non-handed lock accommodates various door configurations. Ideal for commercial and institutional applications requiring reliable access control and professional-grade construction.

ALX53 Single Cylinder Deadbolt Function, Entrance lock

  • Key cylinder outside; push/turn button inside; deadlatch
  • Inside button locks outside lever by pushing button or pushing and turning button
  • Pushed button: unlock with key outside or by rotating inside lever
  • Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then using key or rotating inside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 53 Entrance Lock
Function Family Entrance
ANSI Function F109 - Entry/Office
Lever/Knob Design ATH Athens Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock

Product Cut Sheet
