Schlage ALX53P6-LON Entrance Cylindrical Lock, Longitude Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX53P6LON626
Schlage ALX53-P6-LON-626
Schlage ALX53-P6-LON-626
SchlageALX53
Schlage ALX53P6-LON Entrance Cylindrical Lock, Longitude Lever, 6 Pin Schlage "C" Keyway, Keyed Different
Schlage ALX53-P6-LON-605
Schlage ALX53-P6-LON-606
Schlage ALX53-P6-LON-612
Schlage ALX53-P6-LON-613
Schlage ALX53-P6-LON-619
Schlage ALX53-P6-LON-622
Schlage ALX53-P6-LON-625
Schlage ALX53-P6-LON-643E
Zoomed view
All SCHLAGE Products

Schlage ALX53P6-LON Entrance Cylindrical Lock, Longitude Lever, 6 Pin Schlage "C" Keyway, Keyed Different

  • SKU: ALX53P6LON626
  • ✓
    In Stock
    In Stock
Your Price
$473.00/ea
0% Net 30 Days: Apply Now
Finish: US26D-626 Satin Chrome

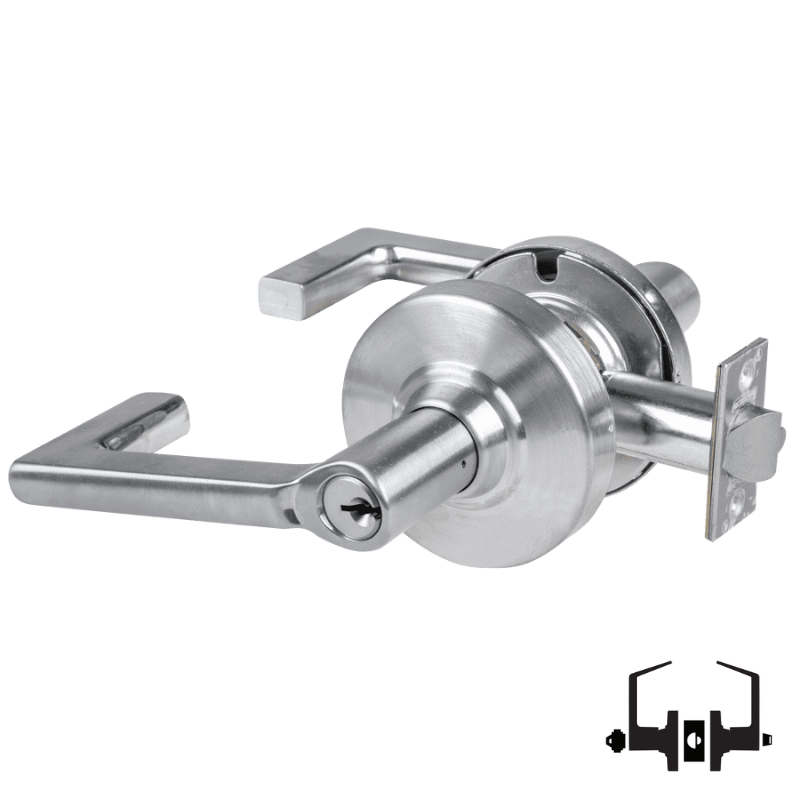

Schlage ALX53-P6-LON Entrance Cylindrical Lock, Field Selectable Vandlgard, Longitude Lever, 6 Pin Schlage C Keyway, Keyed Different, [2] Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 2, Non-Handed

This Schlage ALX53-P6-LON cylindrical lock represents a refined security solution tailored for organizations balancing robust access control with practical installation requirements. The elegant Longitude lever combines with an advanced 6-pin "C" keyway architecture to establish stringent key management protocols while deterring unauthorized reproduction. Field-selectable Vandlgard functionality empowers facility administrators to configure security parameters on-site, eliminating external dependencies and accelerating deployment cycles. The universally non-handed mechanism performs equally on left or right-hand door applications, reducing SKU proliferation and simplifying logistics across distributed facilities. Standard 2-3/4 inch backset and 4-7/8 inch strike measurements ensure seamless compatibility with conventional door frame preparations. Two distinctly keyed keys are included for immediate operational readiness.

ALX53 Single Cylinder Deadbolt Function, Entrance lock

  • Key cylinder outside; push/turn button inside; deadlatch
  • Inside button locks outside lever by pushing button or pushing and turning button
  • Pushed button: unlock with key outside or by rotating inside lever
  • Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then using key or rotating inside lever
  • Field selectable Vandlgard® feature
  • Inside lever always free for immediate egress
Manufacturer Schlage
Grade Grade 2
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL
ANSI Number A156.2-2011 Series 4000, Grade 2
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes



Function 53 Entrance Lock
Function Family Entrance
ANSI Function F109 - Entry/Office
Lever/Knob Design LON Longitude  Lever
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions Rhodes
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" - 1-3/4"
Std. Latch Number 47267042
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 47267101
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Cylindrical Lock
